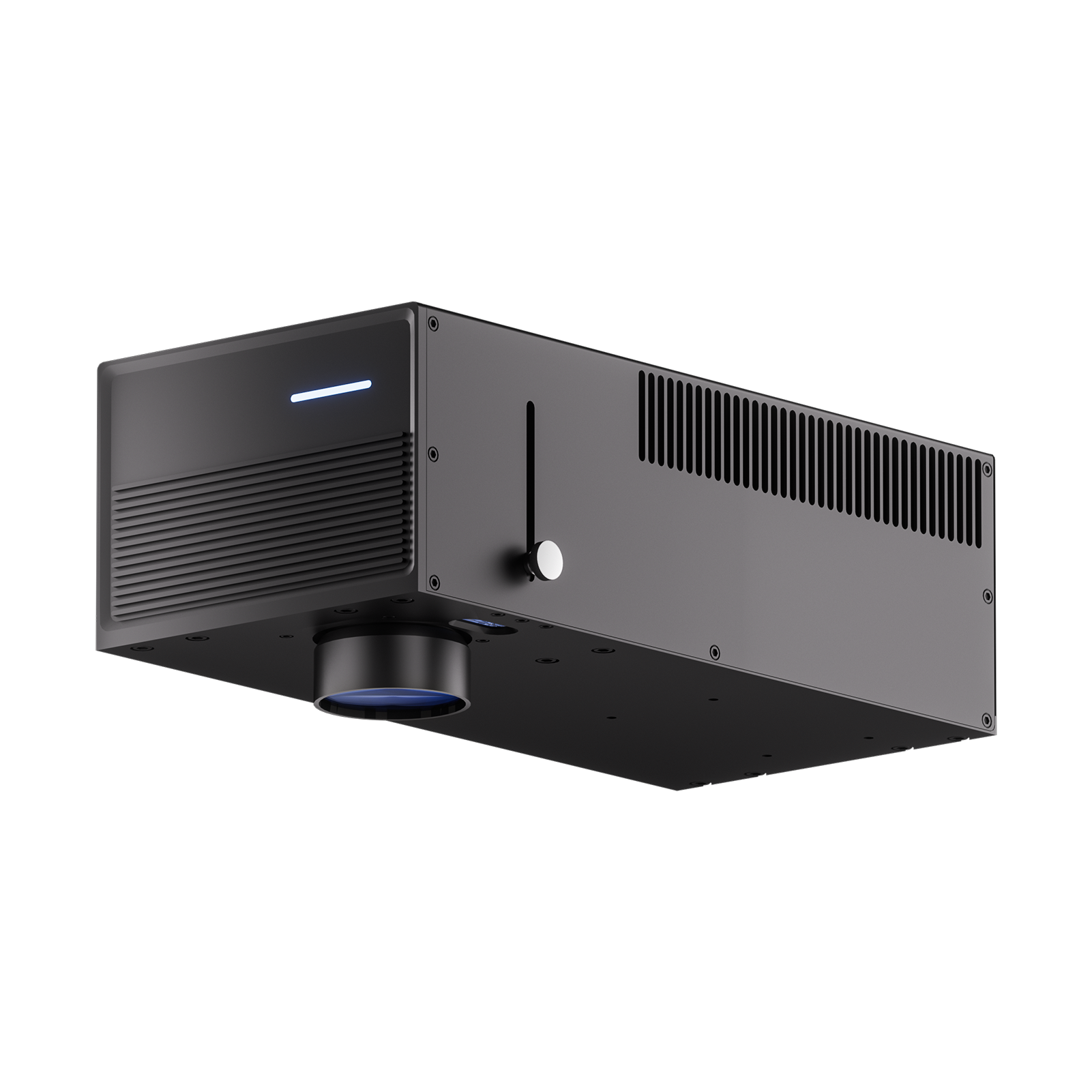

Omni X/XE 12W Laser Upgrade Kit
USD $3,499
USD $4,999
Save:
$1,500

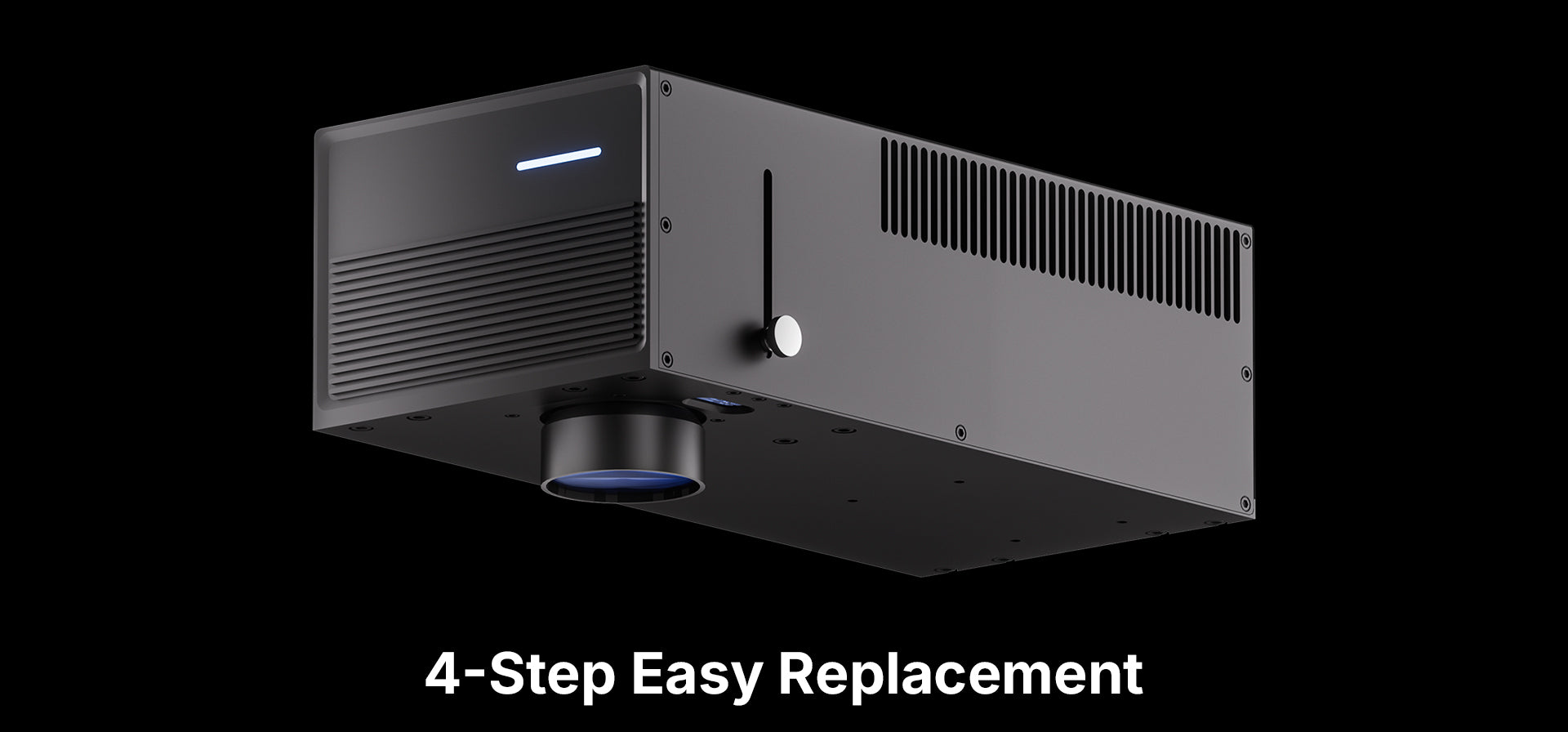

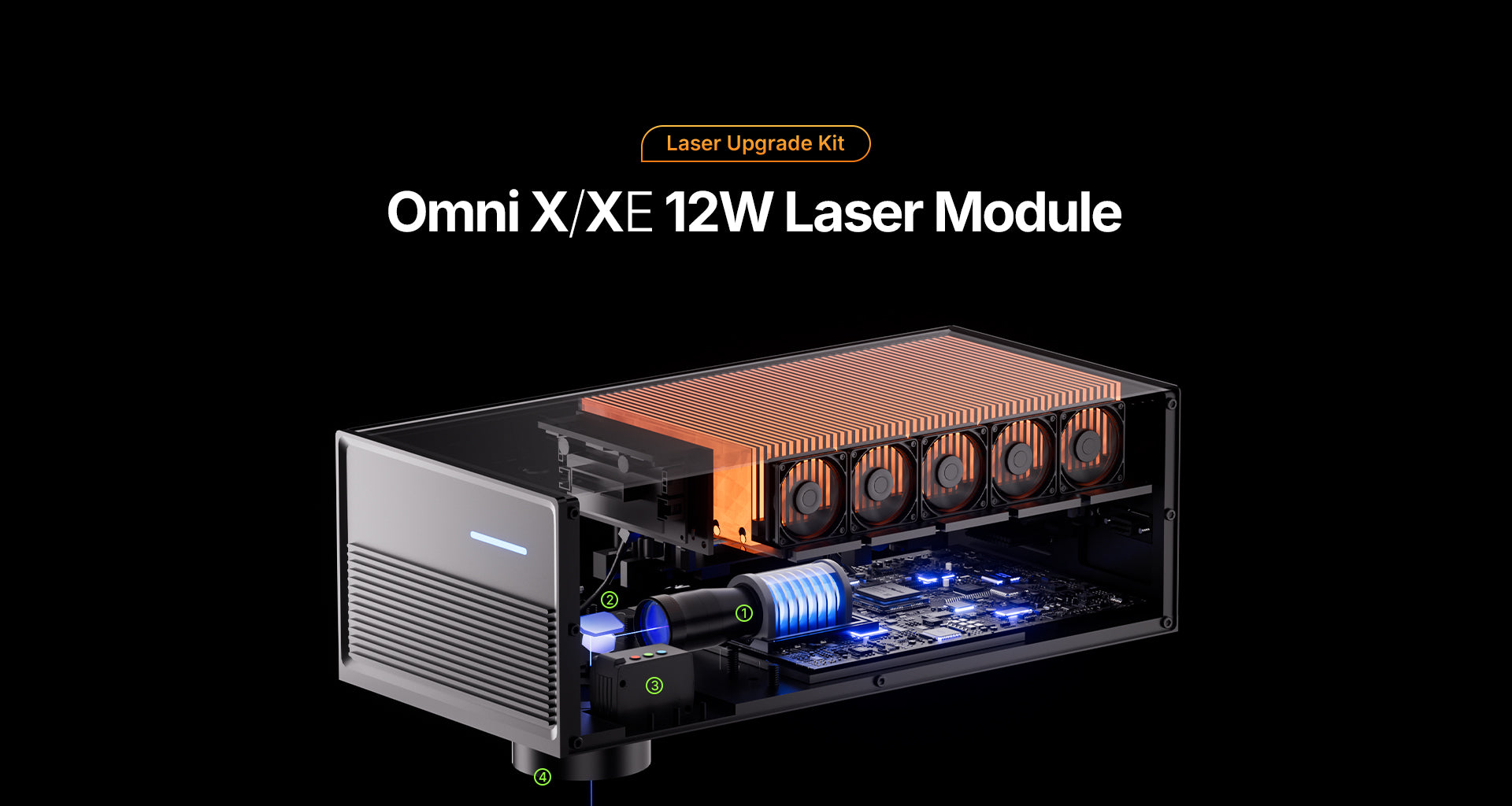

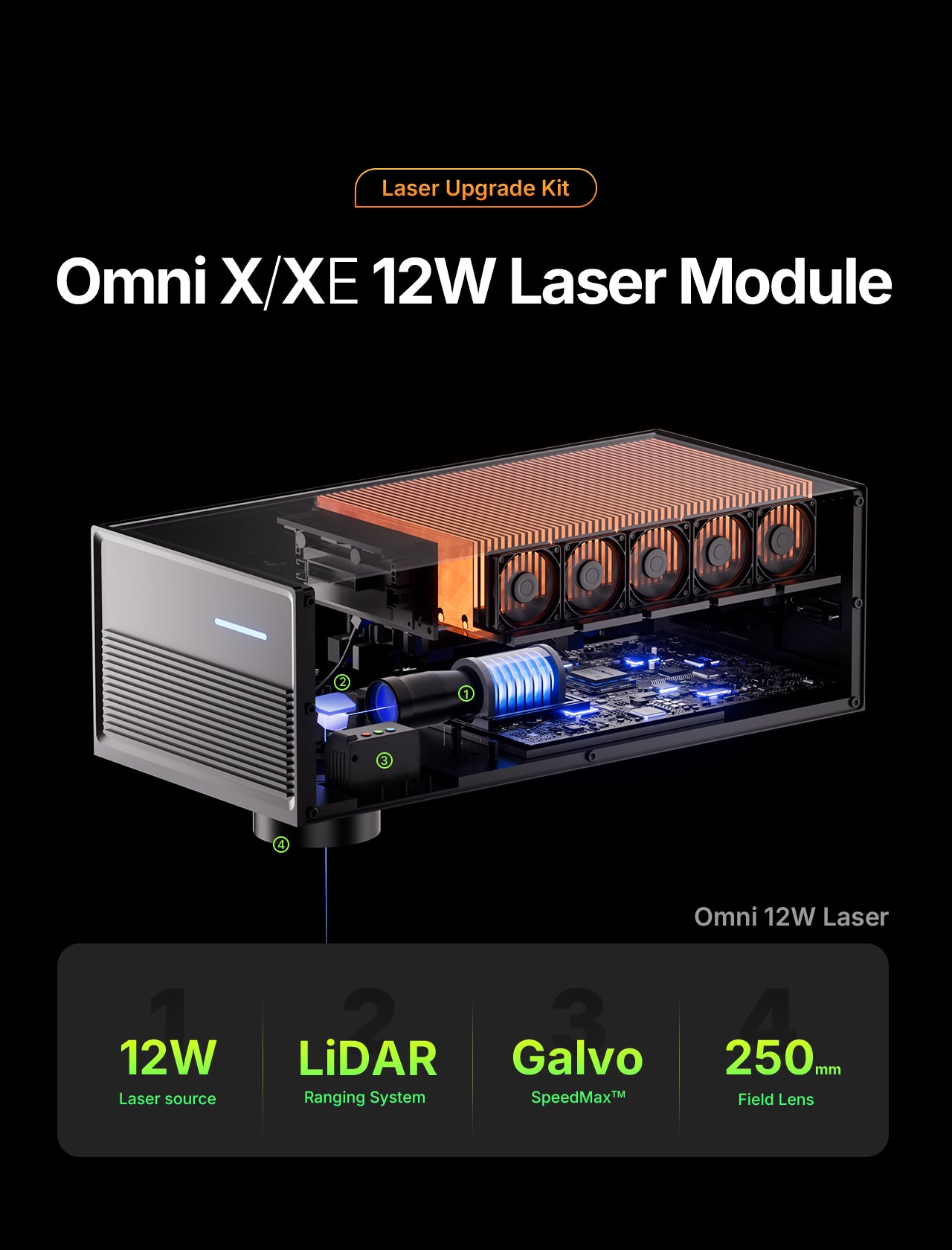

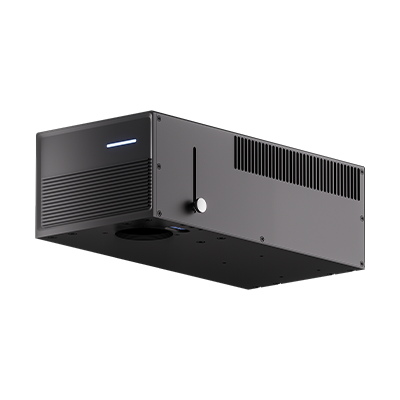

12W UV Laser Module For Omni X/XE
- 12W UV Laser Source
- 250*250mm Working Area
- SuperVision™ 70*70mm Field Lens
- 250*250mm Field Lens
- With Built-in LiDAR Ranging System
- Compatible with ComMarker Omni X/XE
Christmas Event: Enjoy $1500 off on 12W Laser Upgrade Kit
1
Power
Categories: Accessories, Necessary Tool
Omni X/XE 12W Laser Upgrade...
USD $3,499
USD $4,999
Save:
$1,500
Discover the Value of Your Creativity
Join the vibrant ComMarker Facebook group today -- Share your tips,experiences and masterpieces with ComMarker users from all over the world.
Omni X/XE 12W Laser Upgrade Kit
Technical Specifications
Suitable For
ComMarker Omni X / ComMarker Omni XE
What‘s Included
12W UV Laser Module
Built-in LiDAR
Built-in SpeedMax™ Galvanometer
SuperVision™ 70mm Field Lens
250mm Field Lens
Laser Type
UV Laser
Laser Power
12W
Laser Wavelength
355 nm
Working Area
9.8“ × 9.8” (250mm × 250mm)
9.8“ × 15.7” (250mm × 400mm) (With Slide Extension)
Max. Working Speed
10000mm/s

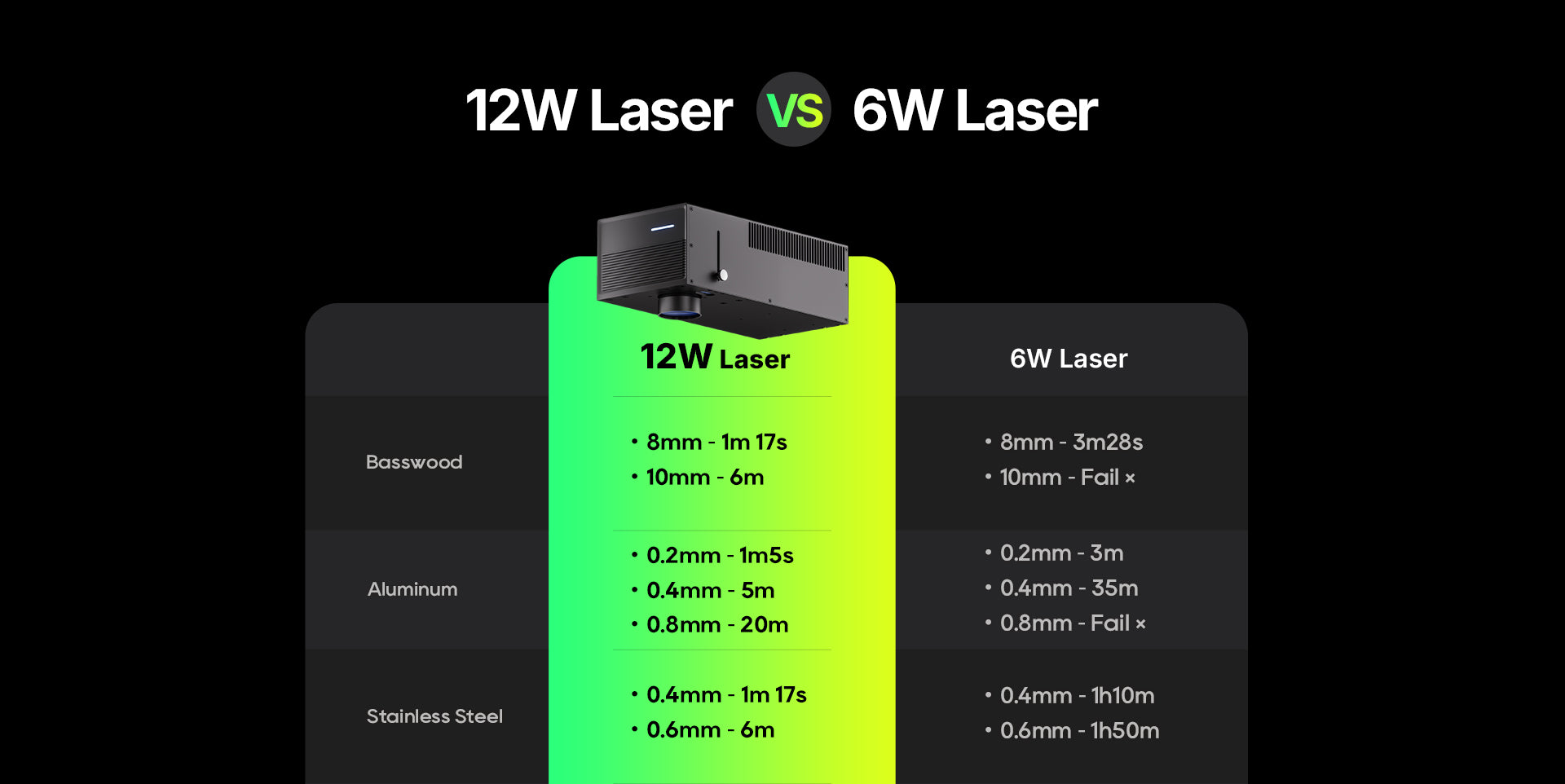

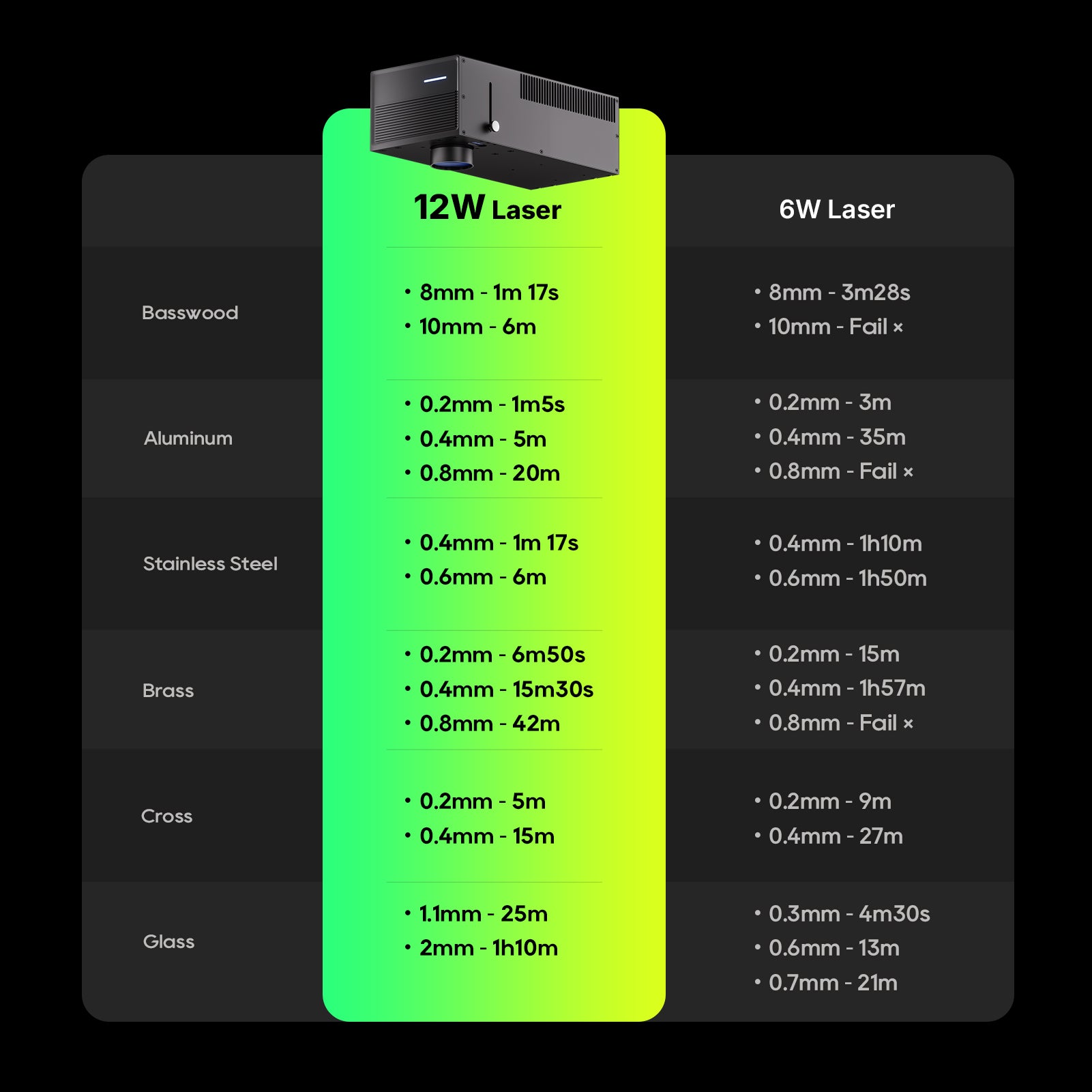

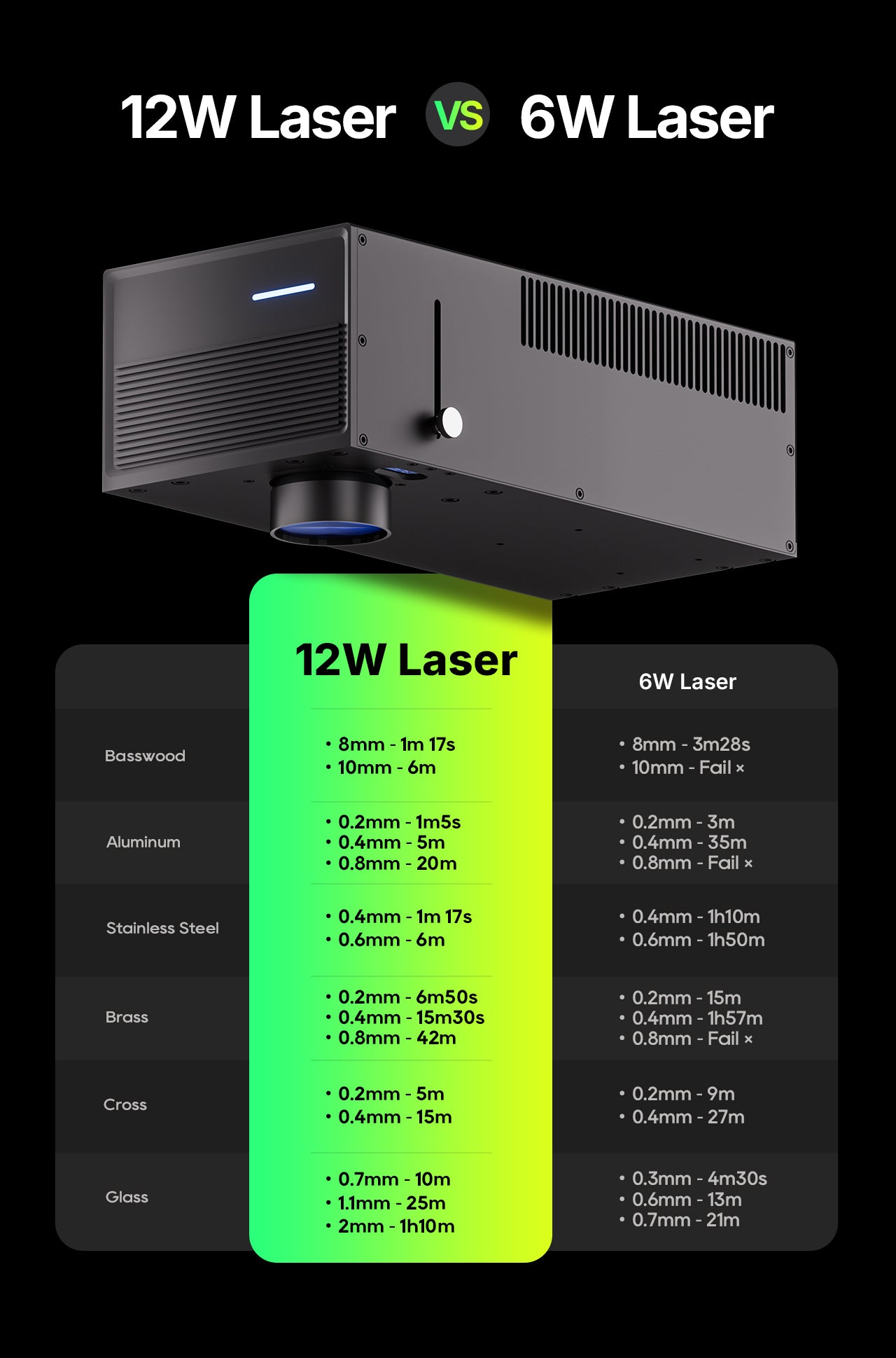

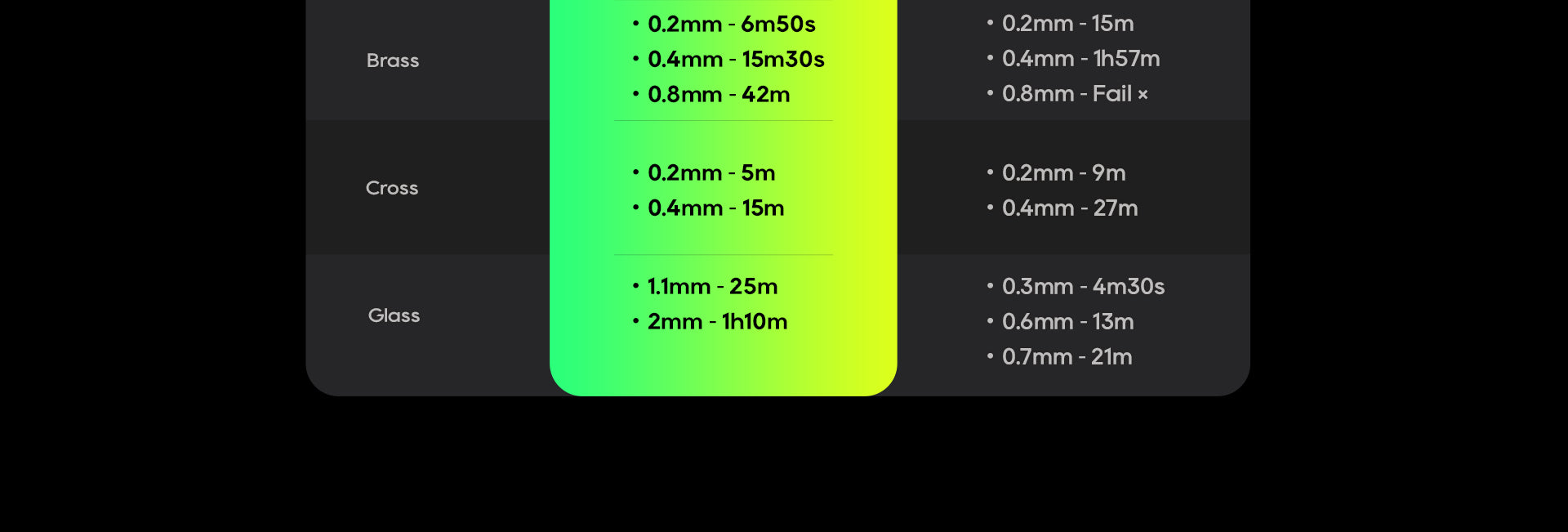

Max. Laser Cutting Capacity (Basswood)
12mm in Multiple Passes
Max. Laser Cutting Capacity (Acrylic)
10mm in Multiple Passes
Max. Laser Cutting Capacity (Stainless Steel)
1mm in Multiple Passes
Laser Spot Dimension
0.0019mm
XY Positioning Accuracy
0.001mm
Temperature Detection
Supported
Working Temperature
50-83℉ (10-28℃)
Show More
In the Box
12W UV Laser Module x 1

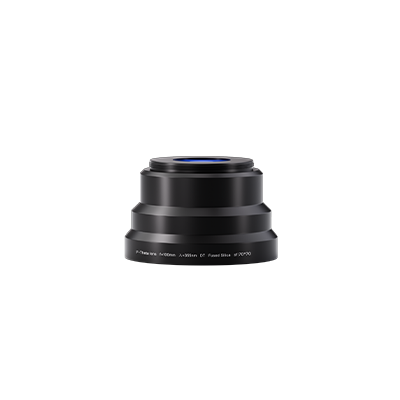

SuperVision™ 70mm Field Lens x 1
250mm Field Lens x 1

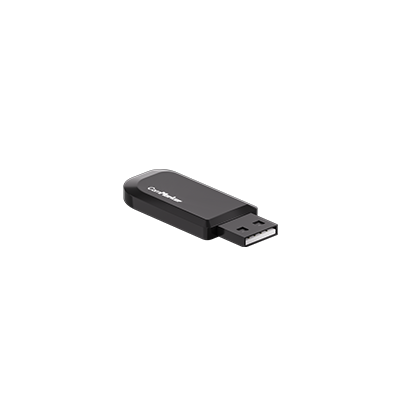

USB Drive x 1

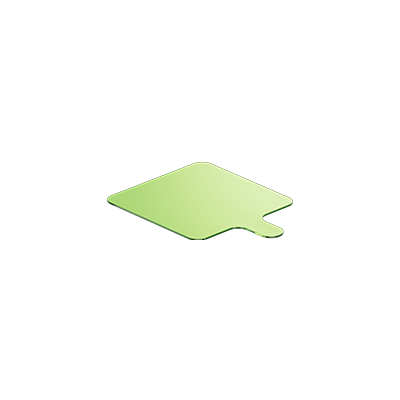

Preview Helper x 1

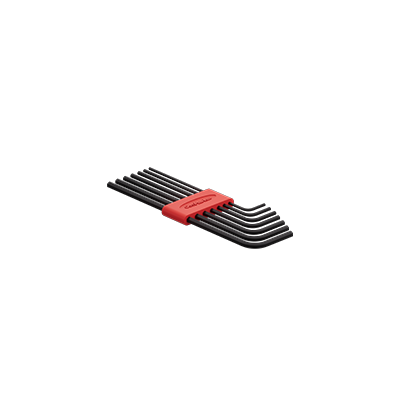

Allen Wrench x 7
Instruction Manual x 1
