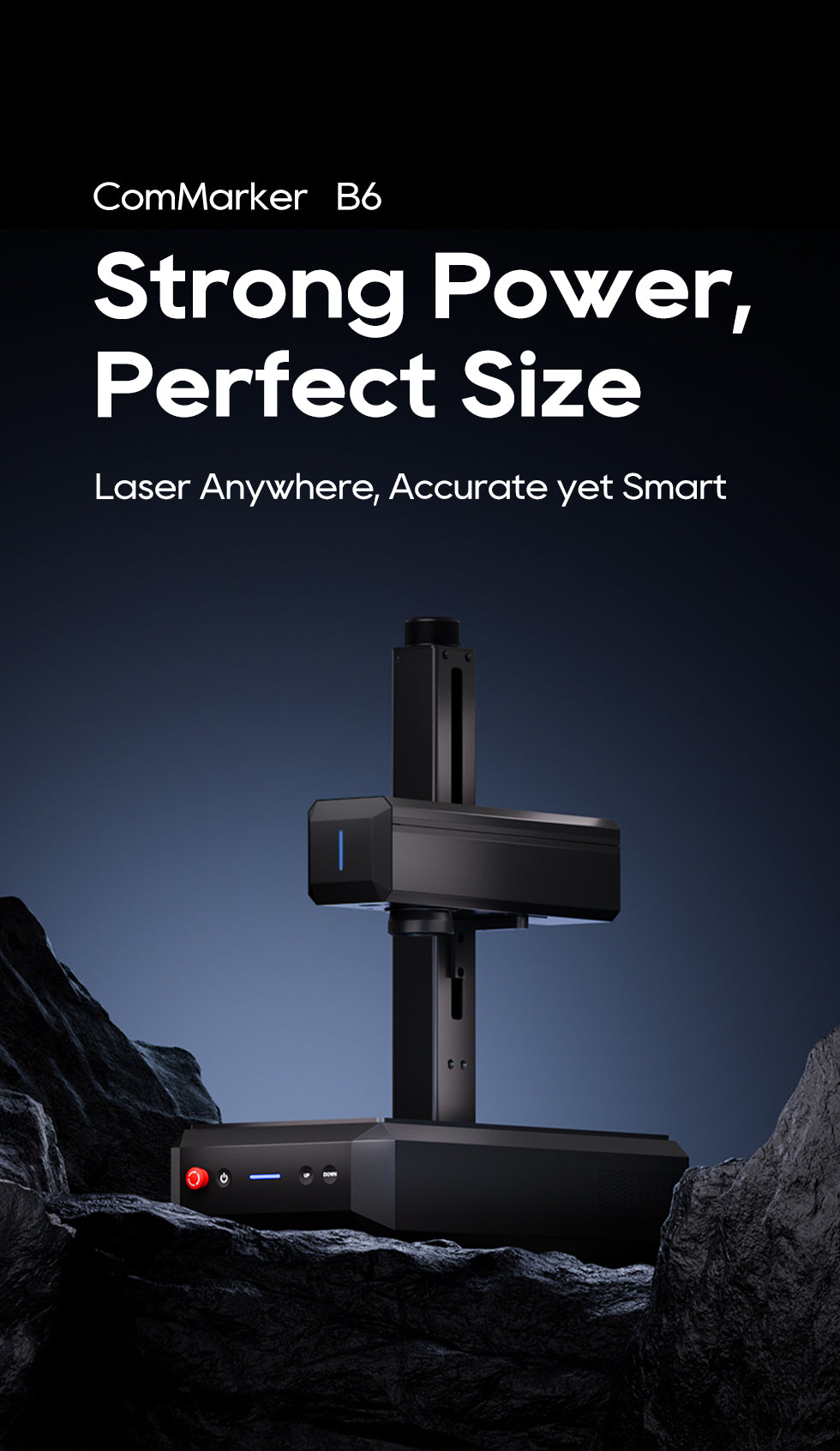

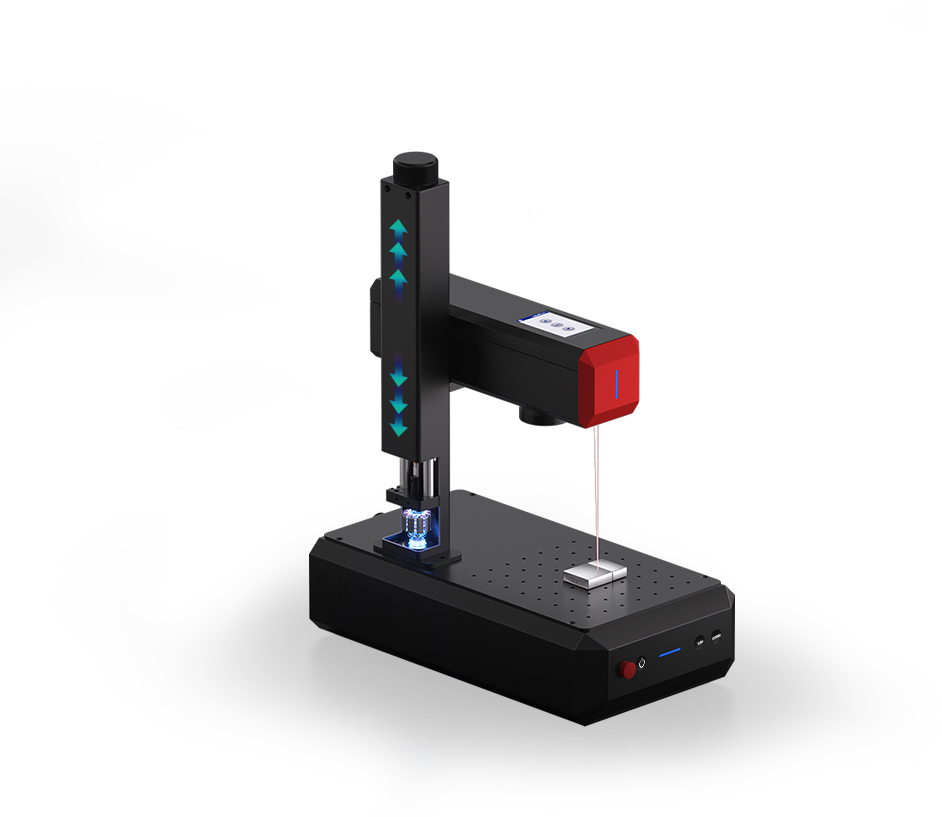

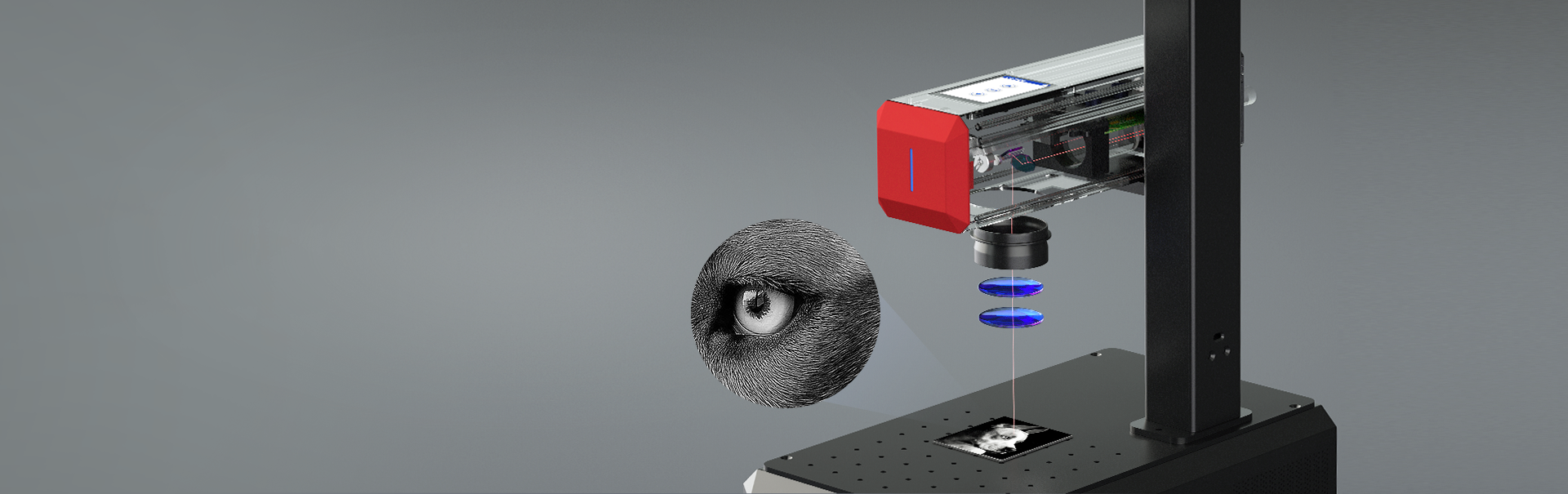

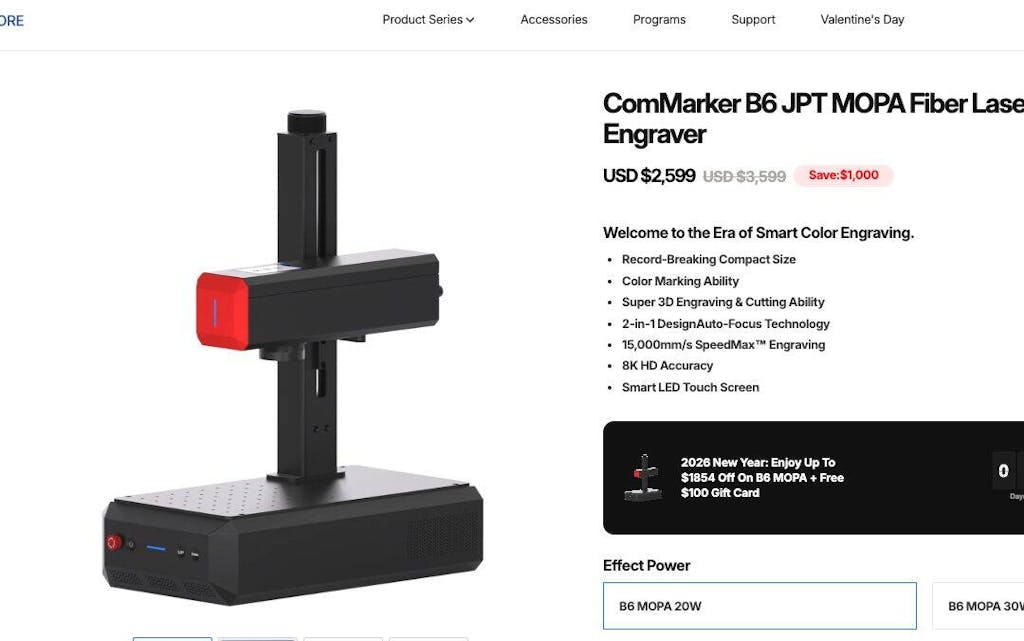

ComMarker B6 JPT MOPA Fiber Laser Engraver
Welcome to the Era of Smart Color Engraving.

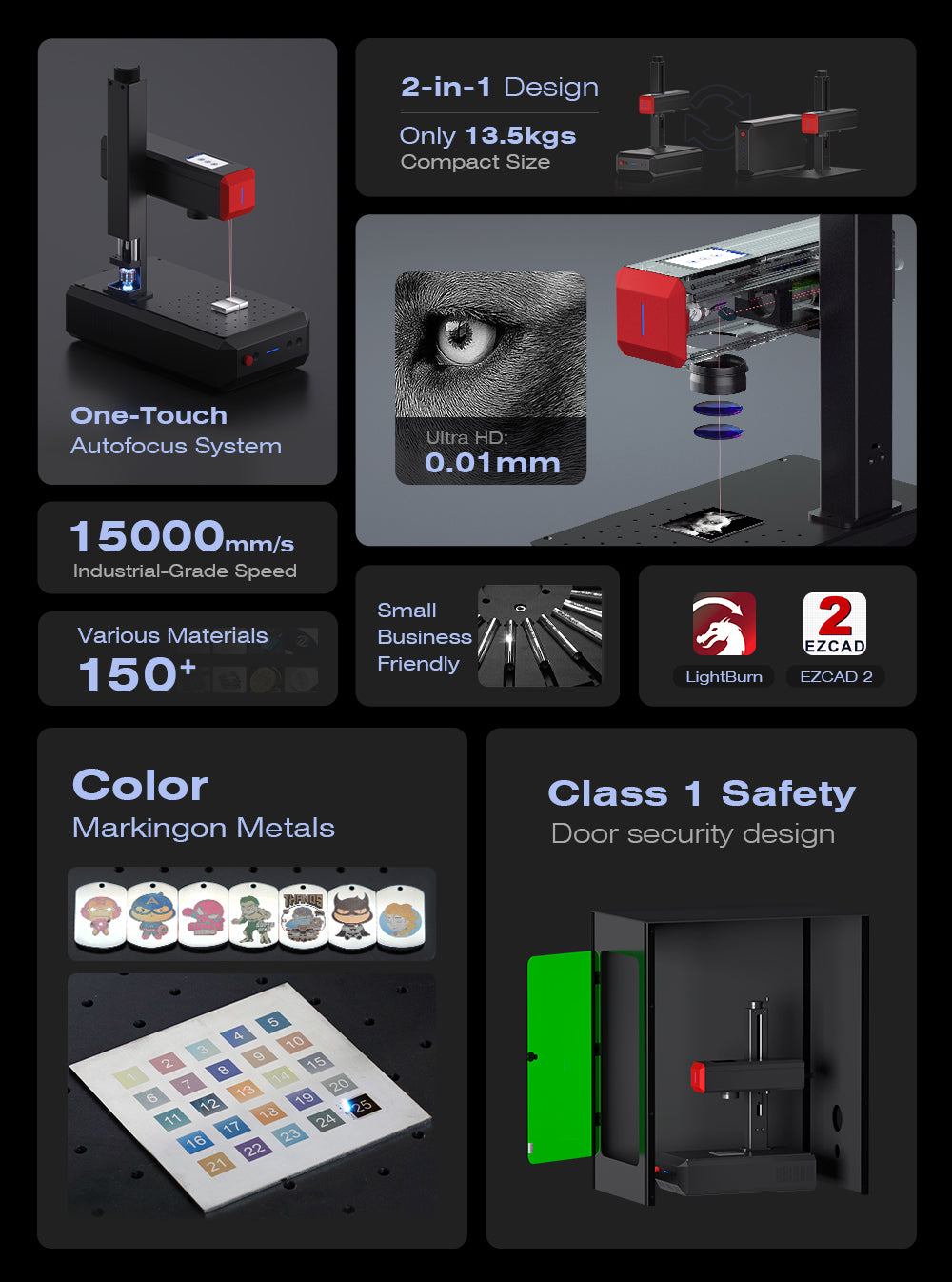

- Record-Breaking Compact Size

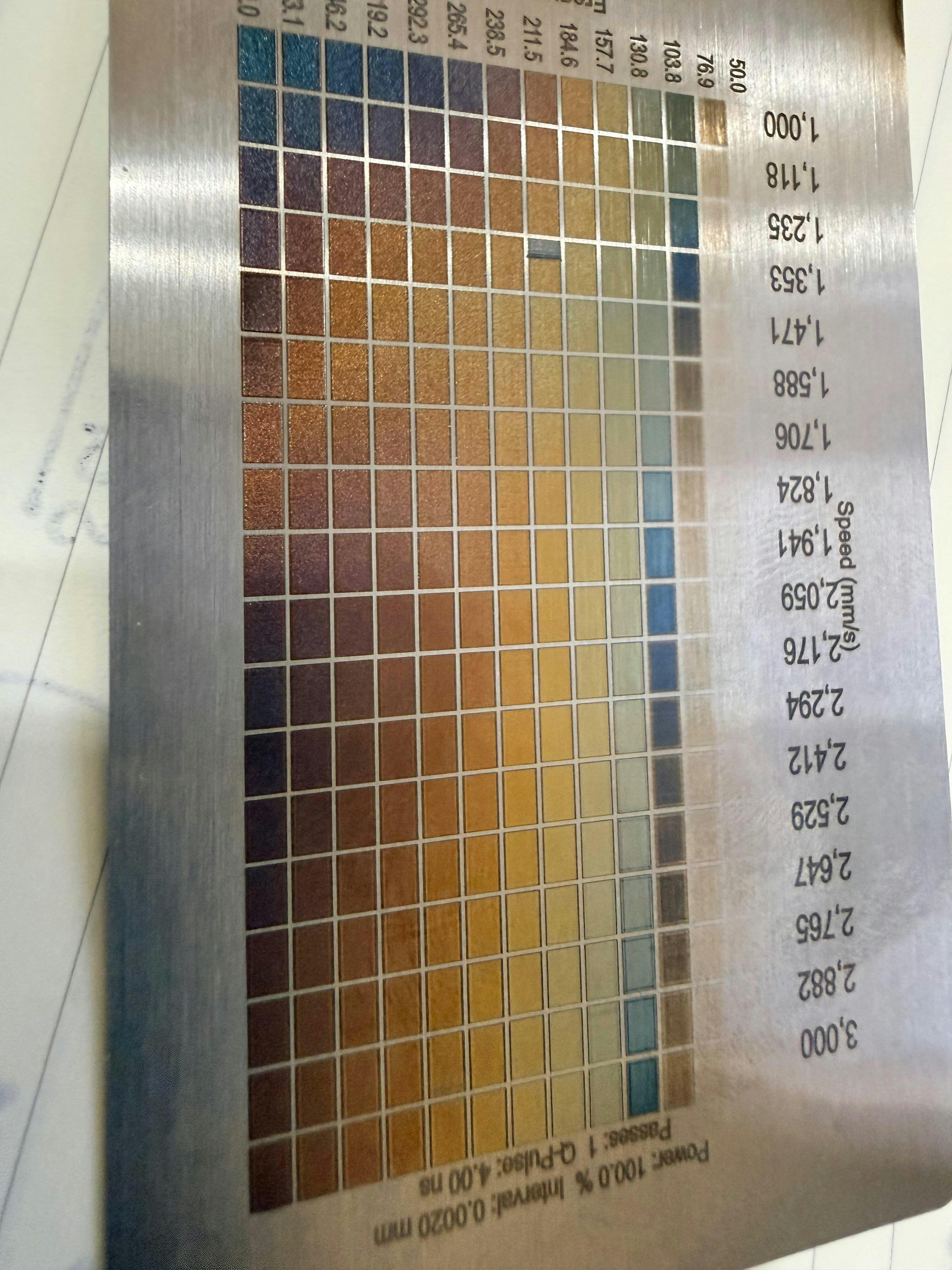

- Color Marking Ability
- Super 3D Engraving & Cutting Ability

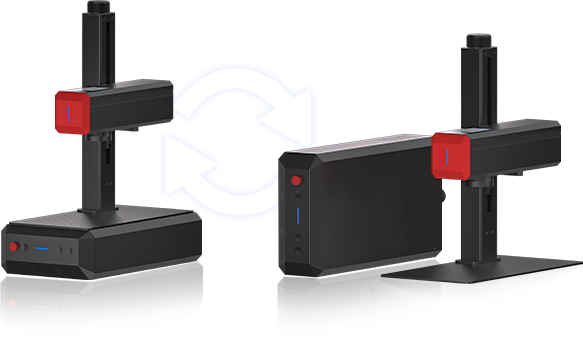

- 2-in-1 DesignAuto-Focus Technology
- 15,000mm/s SpeedMax™ Engraving
- 8K HD Accuracy
- Smart LED Touch Screen
Effect Power
Effect Power:
20W: For Beginners and Hobbyist. Capable for color marking and engraving metal.
30W: For Intermediate User and Hobbyist. Capable of color marking, engraving and deep engraving.
60W: For Enthusiast and Small Business Owner. Capable of color marking metal, engraving and deep engraving, and cutting metal.
For more details, please contact hello@commarker.com
Package
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Categories: Laser Engravers, B Series, Fiber Laser

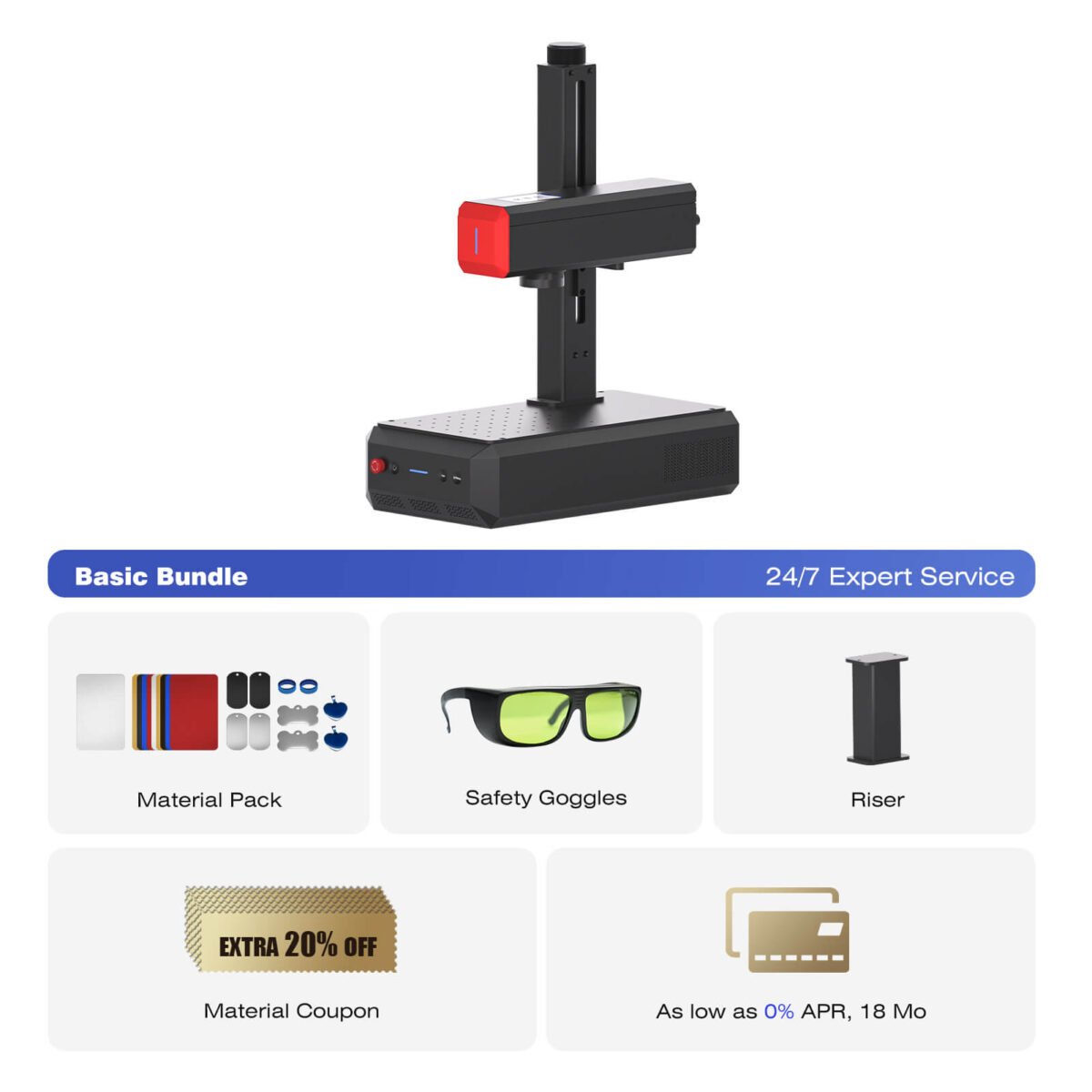

B6 MOPA Basic Bundle

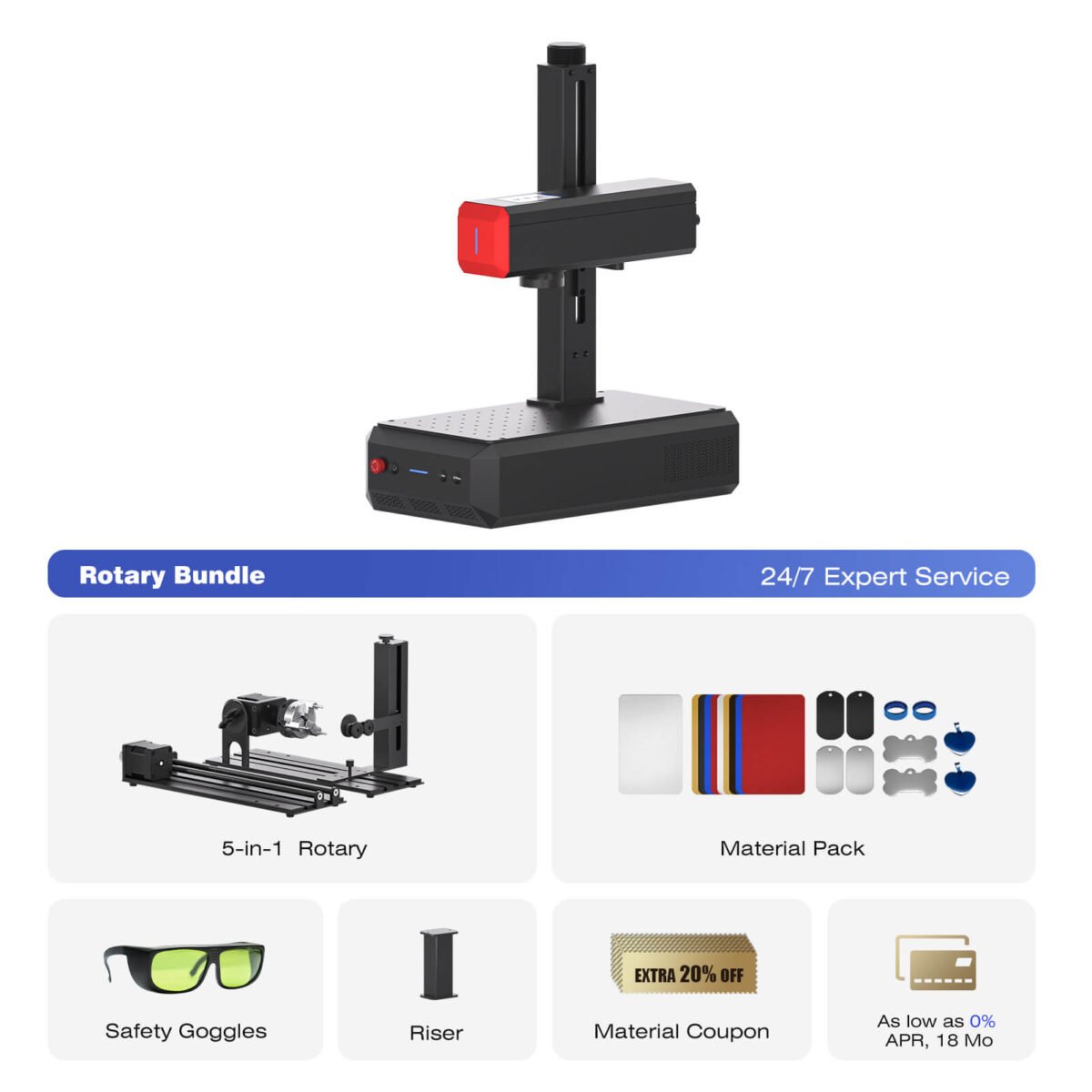

B6 MOPA Rotary Bundle

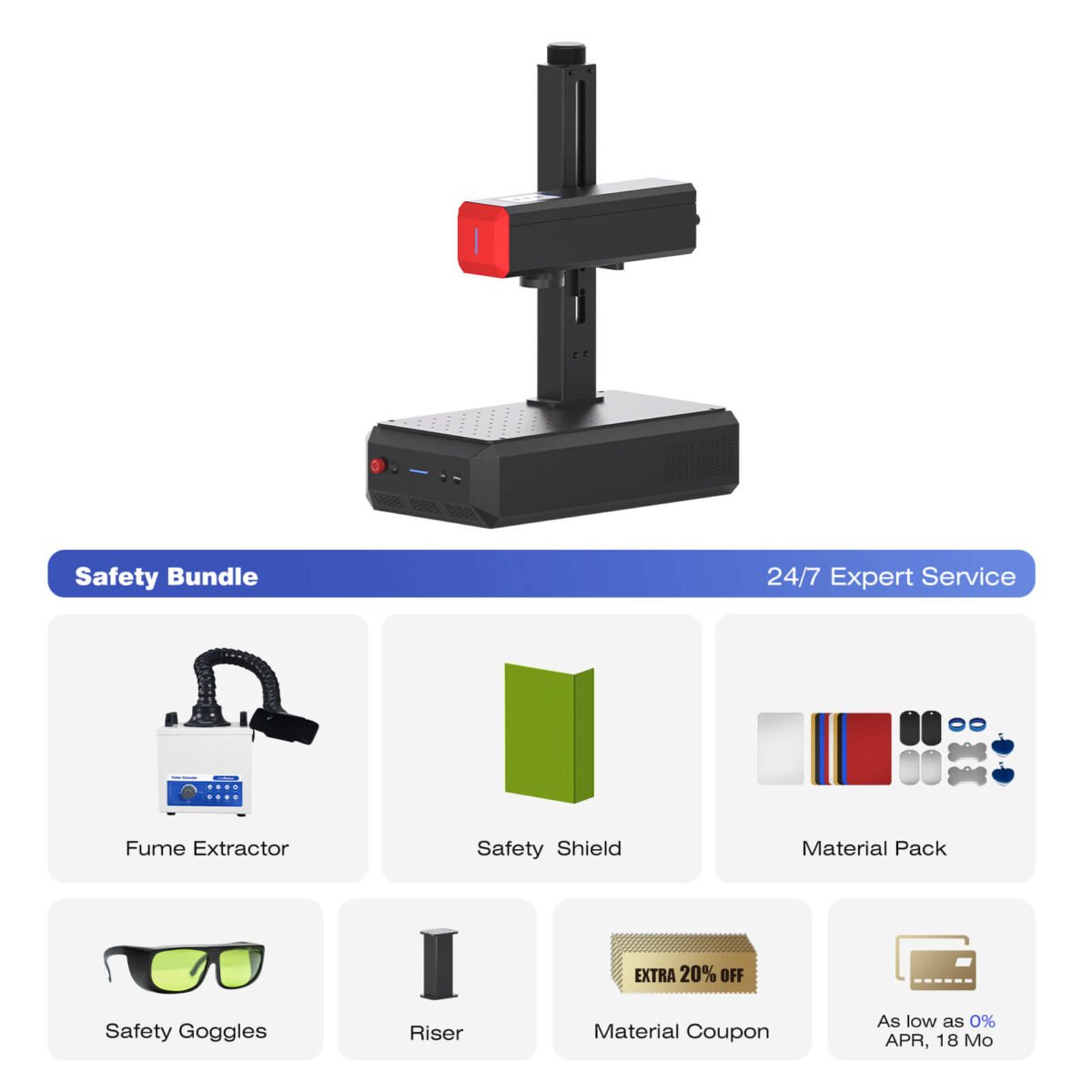

B6 MOPA Safety Bundle

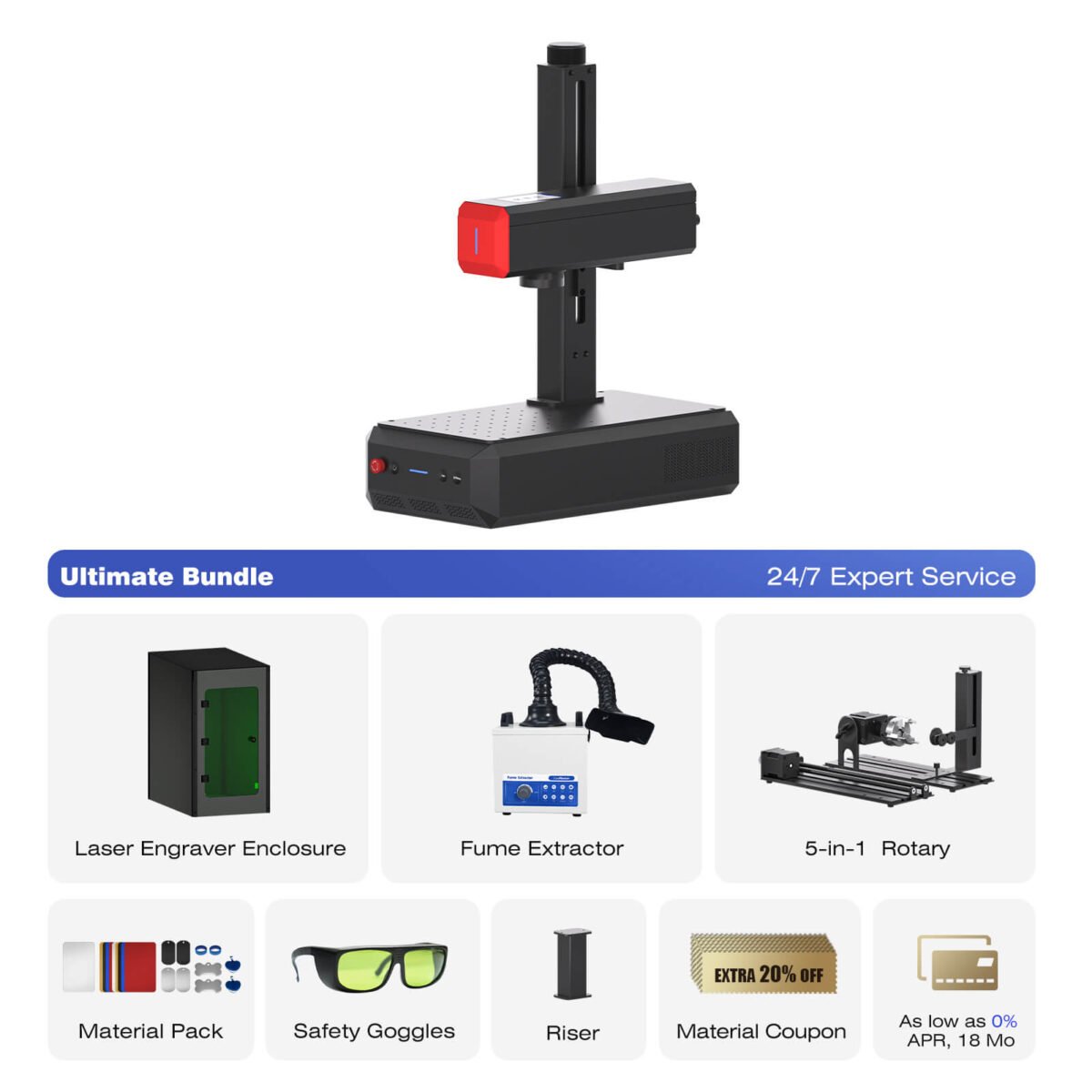

B6 MOPA Ultimate Bundle
B6 MOPA Basic Bundle
B6 MOPA Rotary Bundle
B6 MOPA Safety Bundle
B6 MOPA Ultimate Bundle
B6 MOPA Basic Bundle
B6 MOPA Rotary Bundle
B6 MOPA Safety Bundle
B6 MOPA Ultimate Bundle
Highlights At A Glance

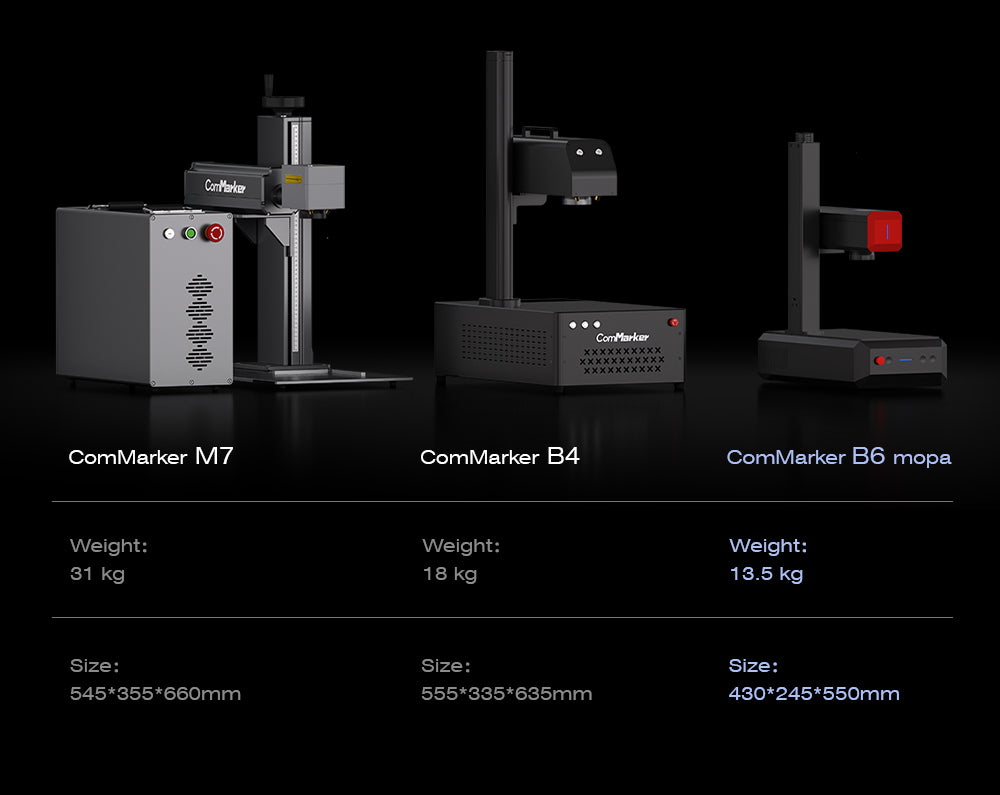

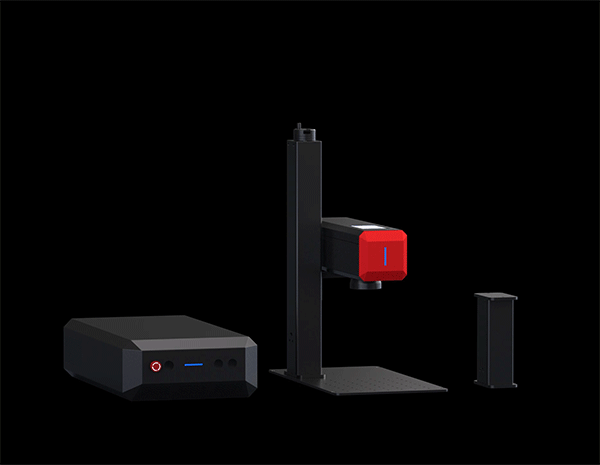

57% Lighter & 55% Smaller
Record-Breaking Again.
Ultra portable Design.
Weighing in at just 13.5 kg (29.7 lbs), ComMarker B6 is the smallest industrial-grade fiber laser machine with 20W/30W/50W output. its lightweight design enables on-the-go engraving, ensuring that your creative endeavors are never hindered by location or time constraints, effortlessly adapting to a multitude of applications.
Daily Marking
Depth with 3D Results
-
-
-
METAL CUTTING
Super Cutting Ability
-
30WEffortlessly Cuts Metals Up To 0.5mm
50WEffortlessly Cuts Metals Up To 1.2mm
More Than Your lmagination

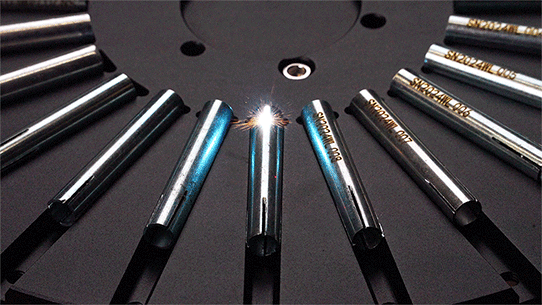

Batch Engraving Made EasyCoupled with a fixed positioning bar and foot pedal switch, customerscan easily execute batch engraving tasks,such as QR codes, serial numbersstreamlining workflows and boosting productivity

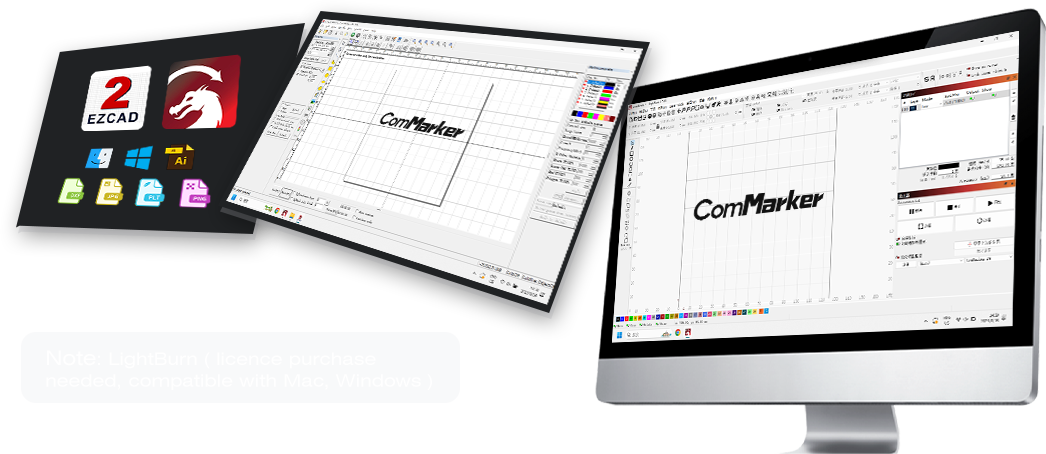

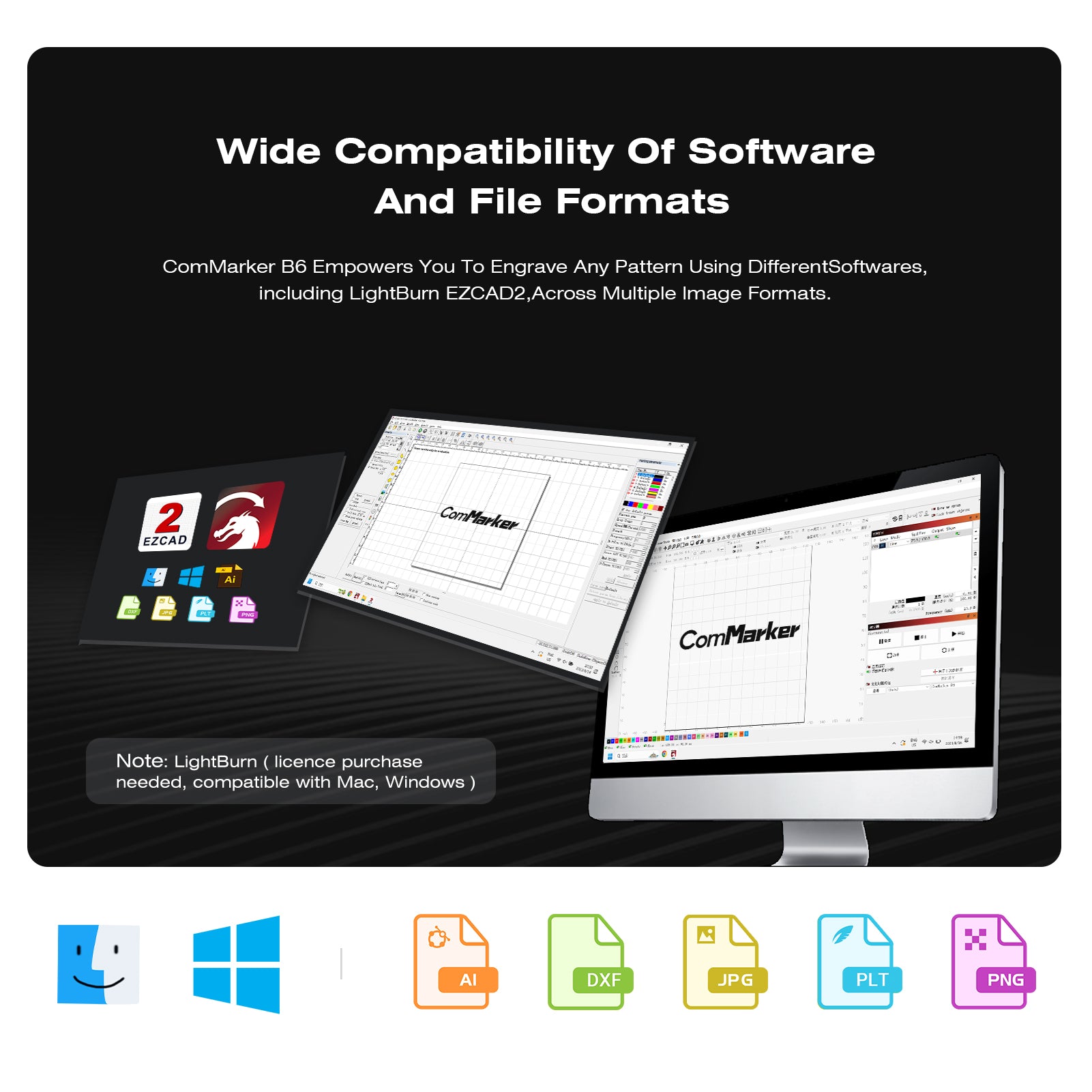

Wide Compatibility of Software And File Formats
ComMarker B6 MOPA empowers you to engrave any pattern using different software, including LightBurn EZCAD2, across multiple image formats.

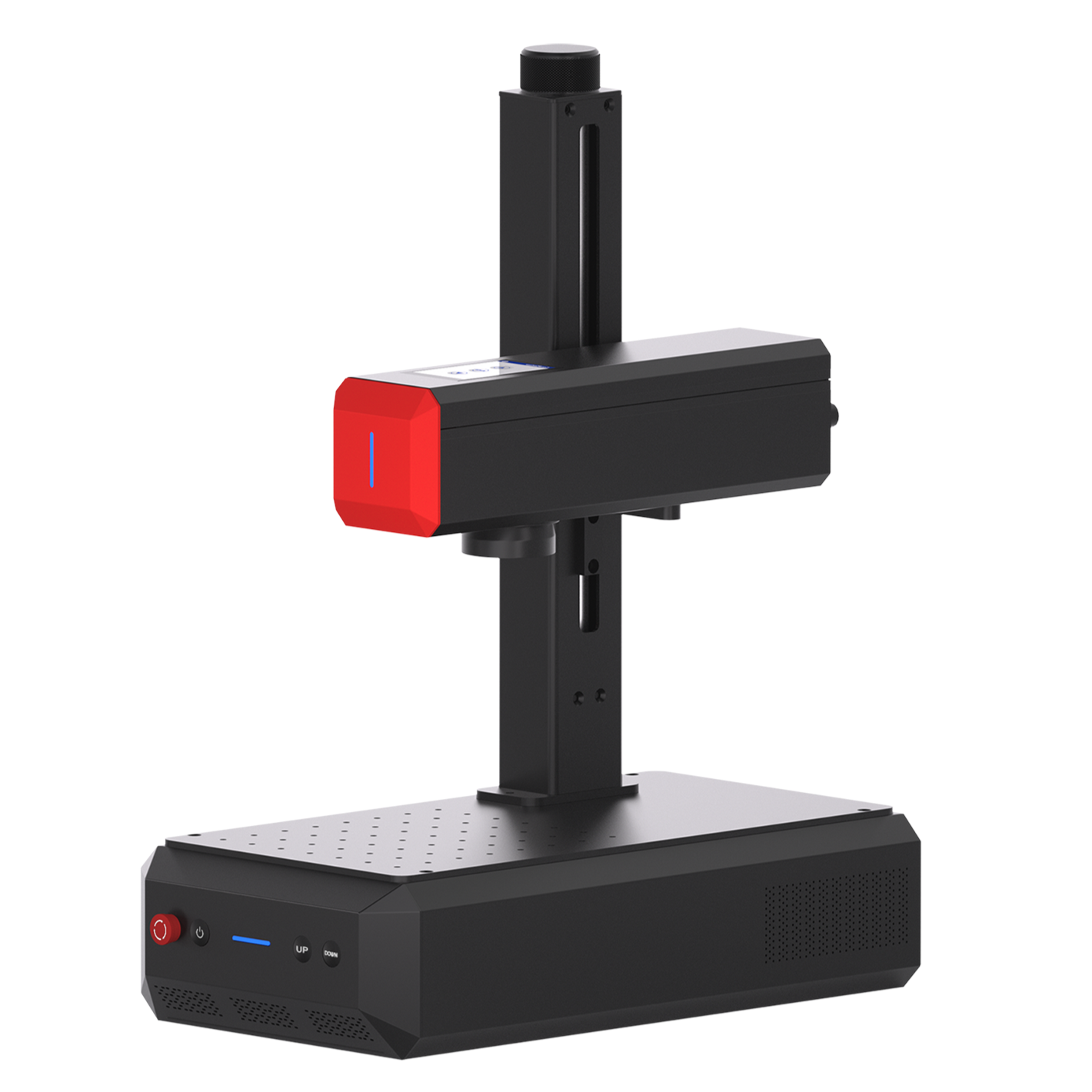

ComMarker B6 MOPA

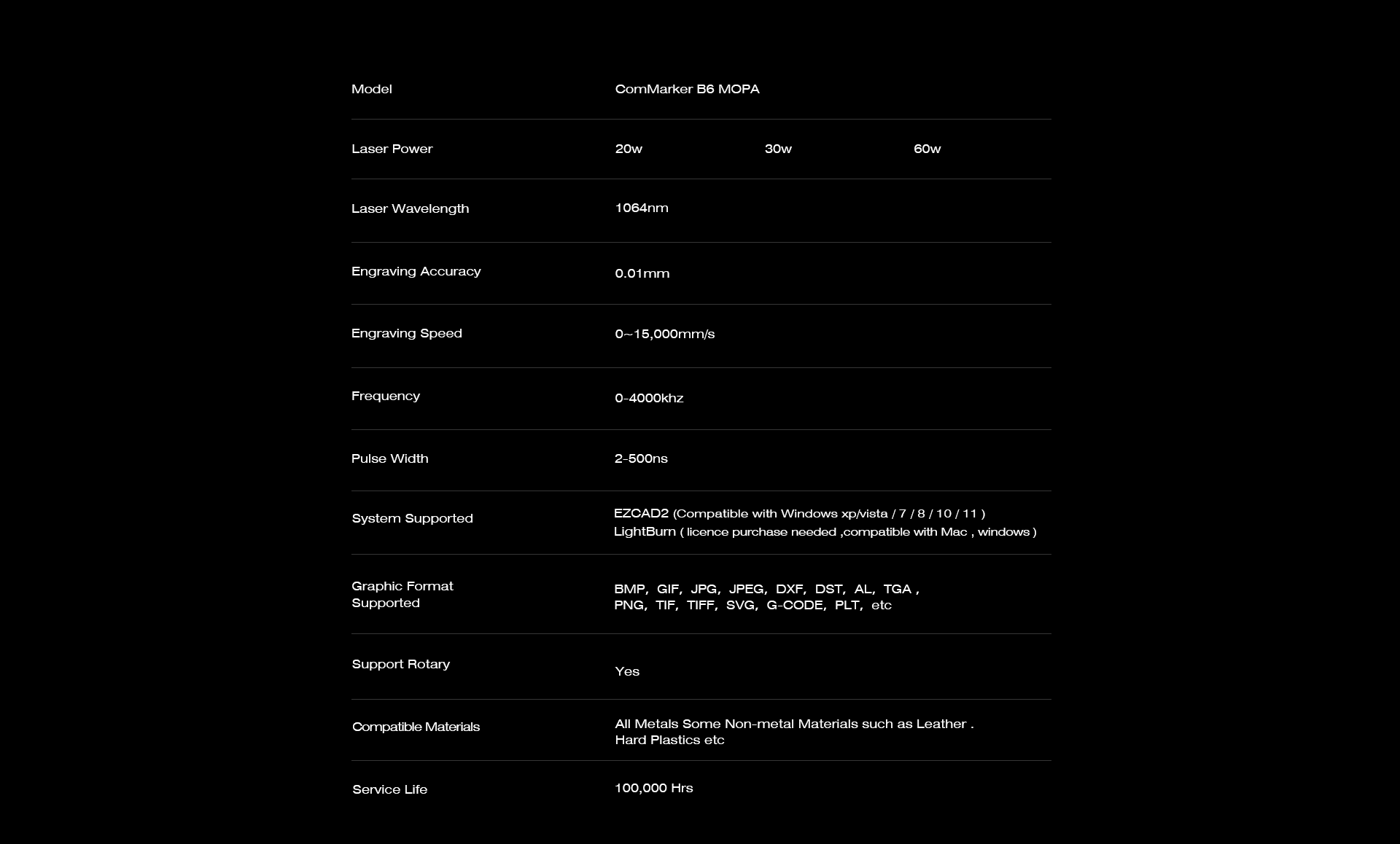

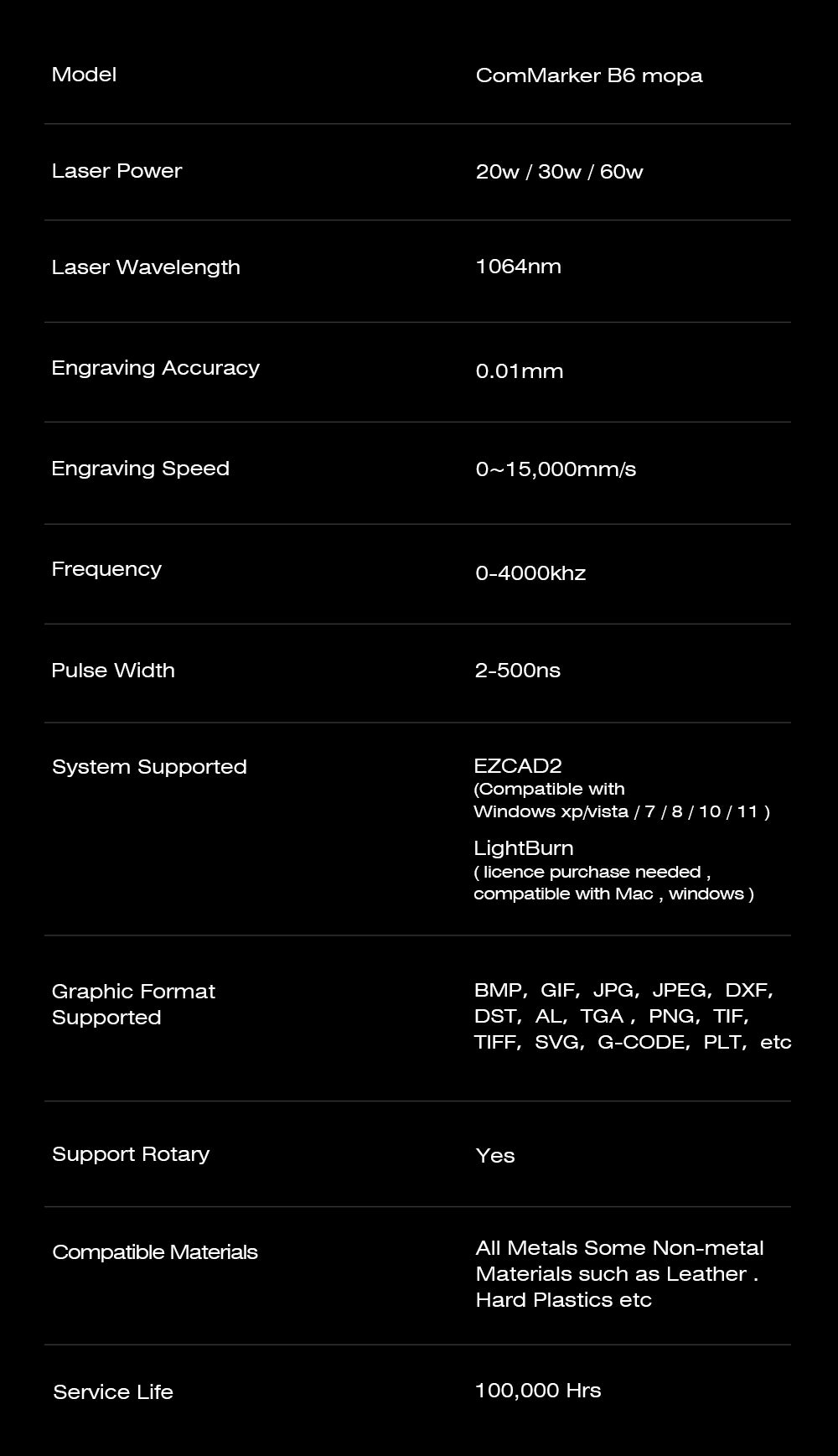

Technical Specifications
Laser Type

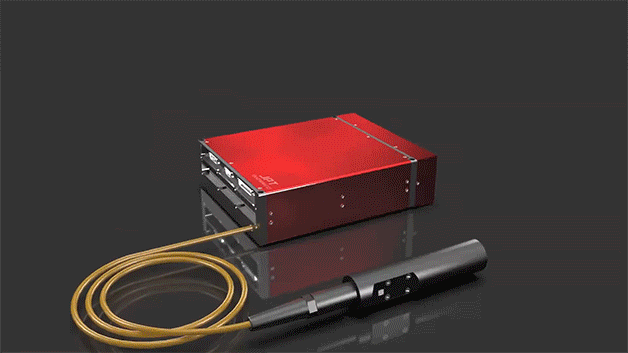

JPT MOPA Fiber Laser
Laser Power
20W / 30W / 60W
Laser Wavelength
1064 nm
Expected Service Life
100,000 hr
Processing Mode
Laser Engraving
Laser Cutting
Color Marking

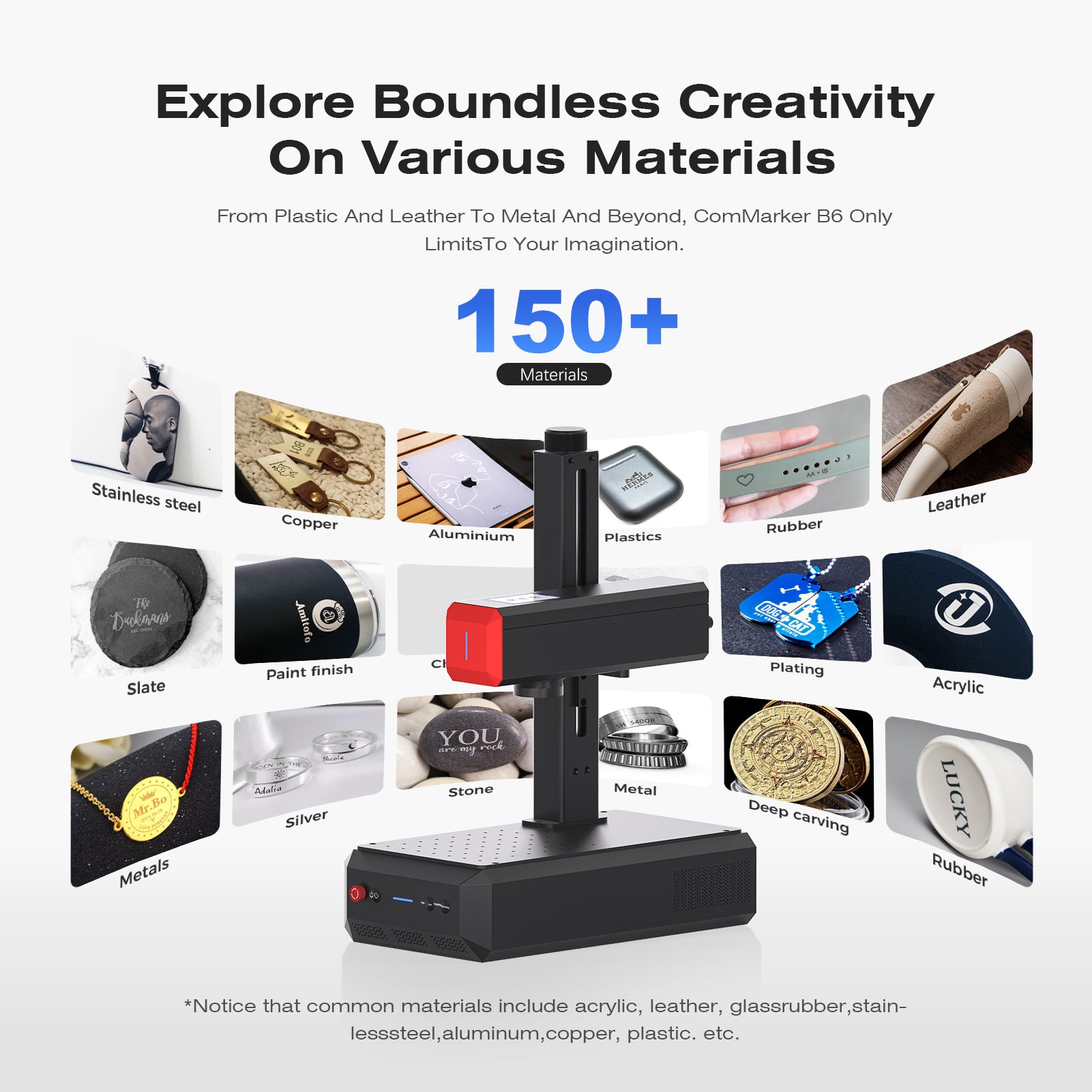

Supported Materials
Stainless Steel, Aluminum, Brass, Copper, Gold, Silver, Stone, Black Acrylic, Leather, Plastic

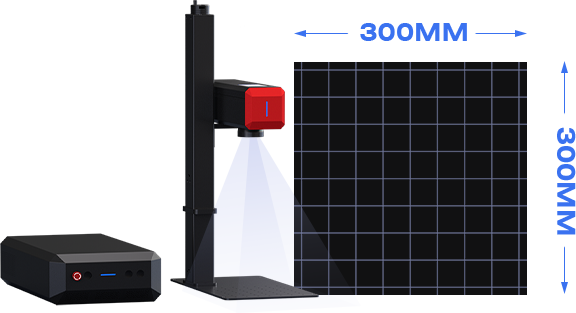

Working Area
5.9“ × 5.9” (150mm × 150mm)
11.8“ × 11.8” (300mm × 300mm) (With Optional Lens)
Max. Working Speed
15000mm/s
Max. Laser Cutting Capacity (Stainless Steel)
0.6mm in Multiple Passes (20W)
0.8mm in Multiple Passes (30W)
2mm in Multiple Passes (60W)
Color Marking
Supported

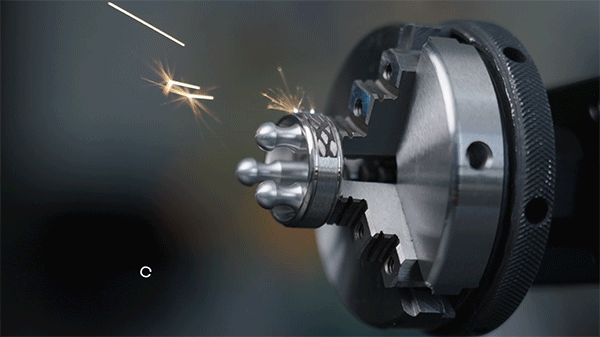

360 Rotary Engraving
Supported
Laser Spot Dimension
0.015mm
XY Positioning Accuracy
0.001mm

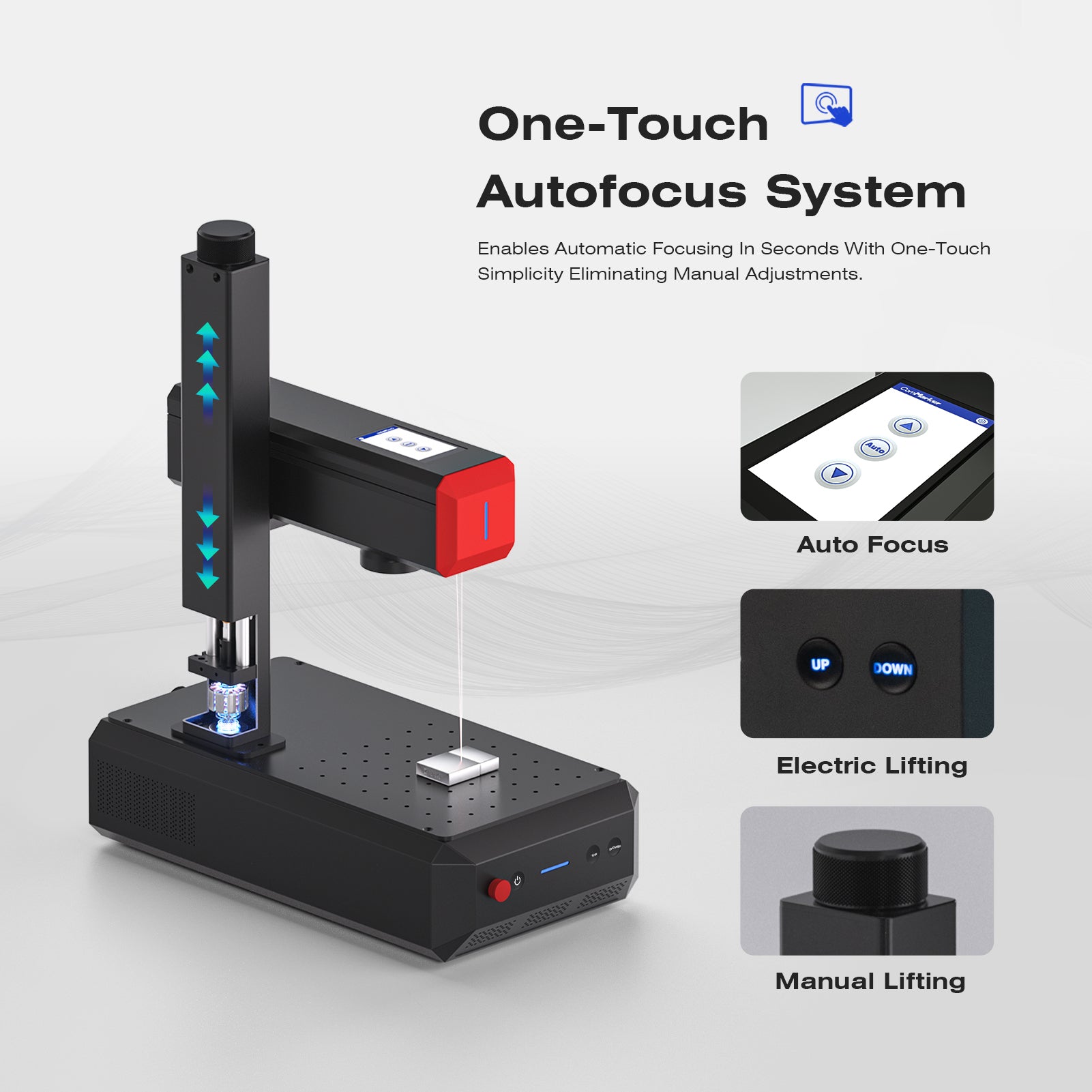

Focus Mode
Auto Focus

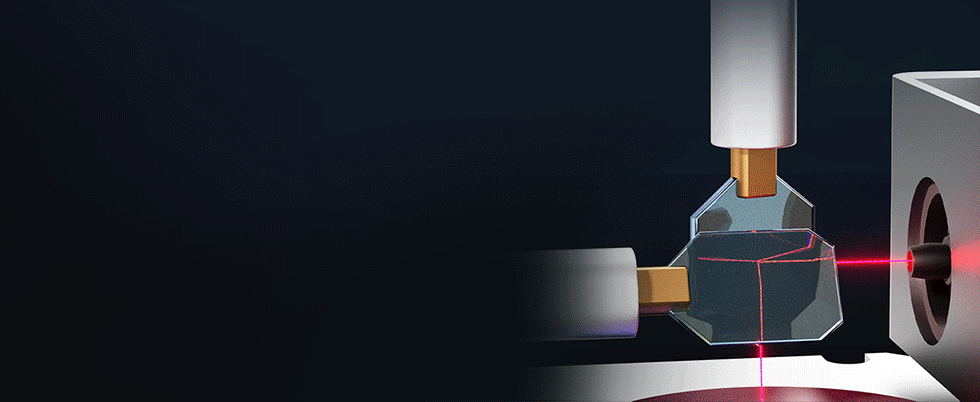

Z Height Measuring Method
Triangulation
Z Height Measuring Accuracy
0.001mm
Supported Software
EZCAD / Lightburn
Operating System
Windows / macOS
Connection Method
USB
Supported Files
BMP, GIF, JPG, JPEG, DXF, DST, AL, TGA, PNG, TIF, TIFF, SVG, G-CODE, PLT, etc
Safety Certification

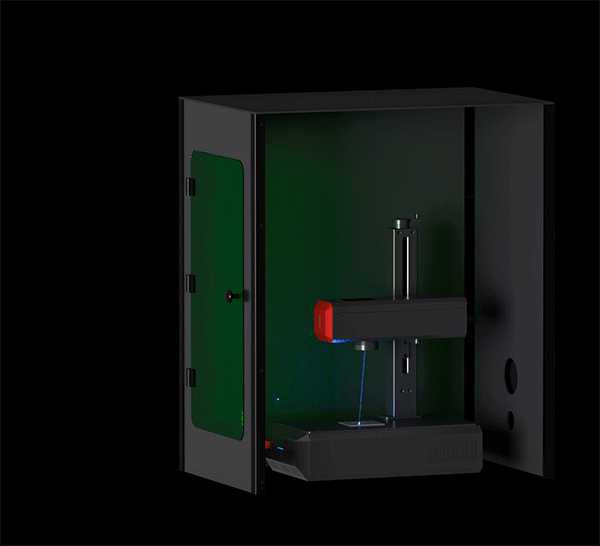

Class 1 Laser Safety (With Enclosure)
Class 4 Laser Safety (Single Machine)
Temperature Detection
Supported
Door Sensor
Supported (With Enclosure)
Build Volume
16.9” × 9.4” × 21.7”
(430mm × 240mm × 550mm)
Product Weight
29.7 lbs (13.5 kg)
Chassis & Shell
Aluminum, Steel, Acylic
Laser Frequency
1-4000 kHz
Pulse Width
2-350ns (20W)
2-350ns (30W)
2-500ns (60W)
Maximum Pulse Energy
0.8mJ (20W)
0.8mJ (30W)
2mJ (60W)
Power Adapter Input Voltage
100-230V
Working Temperature
50-83℉ (10-28℃)
Discover the Value of Your Creativity
Join the vibrant ComMarker Facebook group today -- Share your tips,experiences and masterpieces with ComMarker users from all over the world.

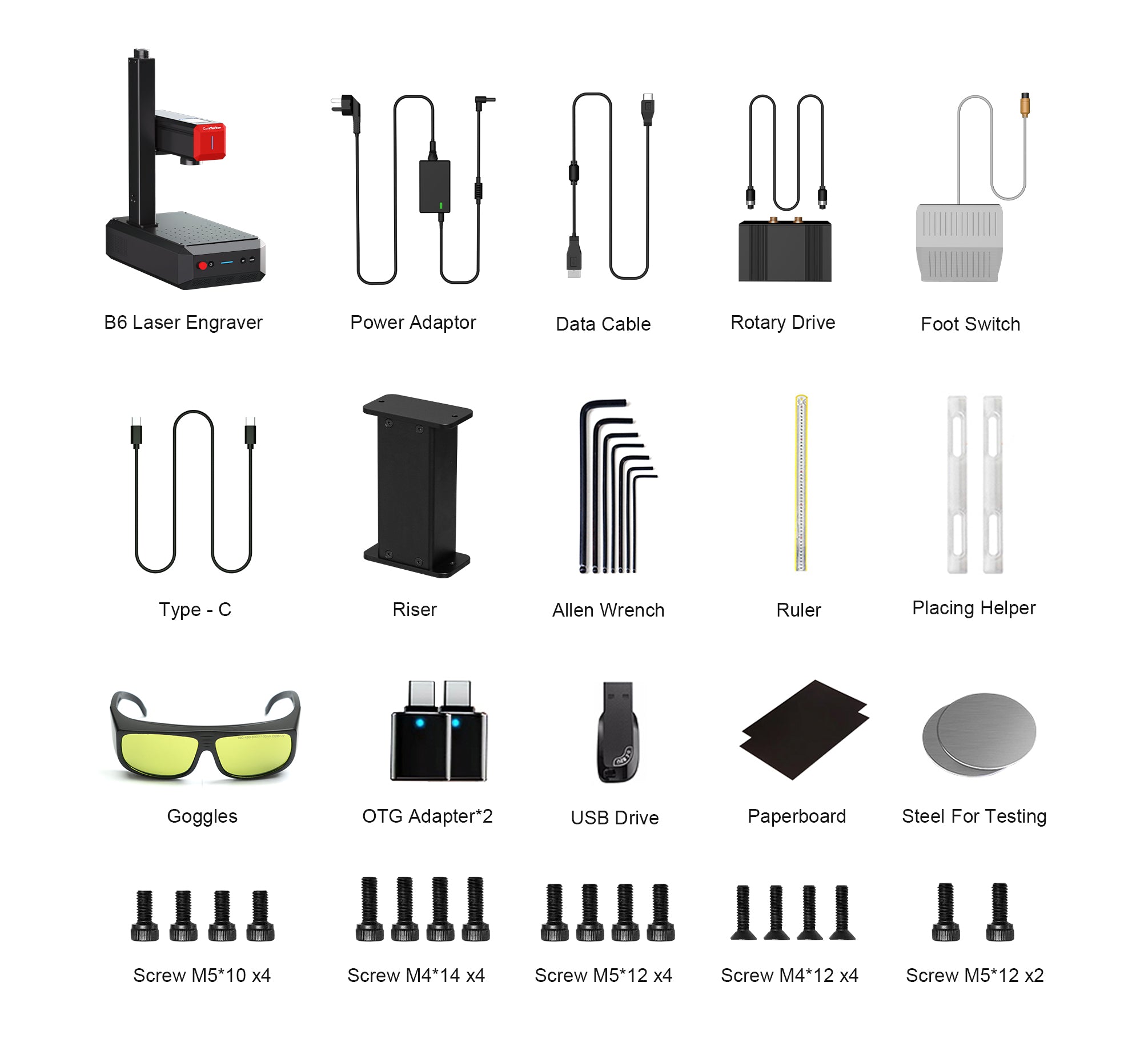

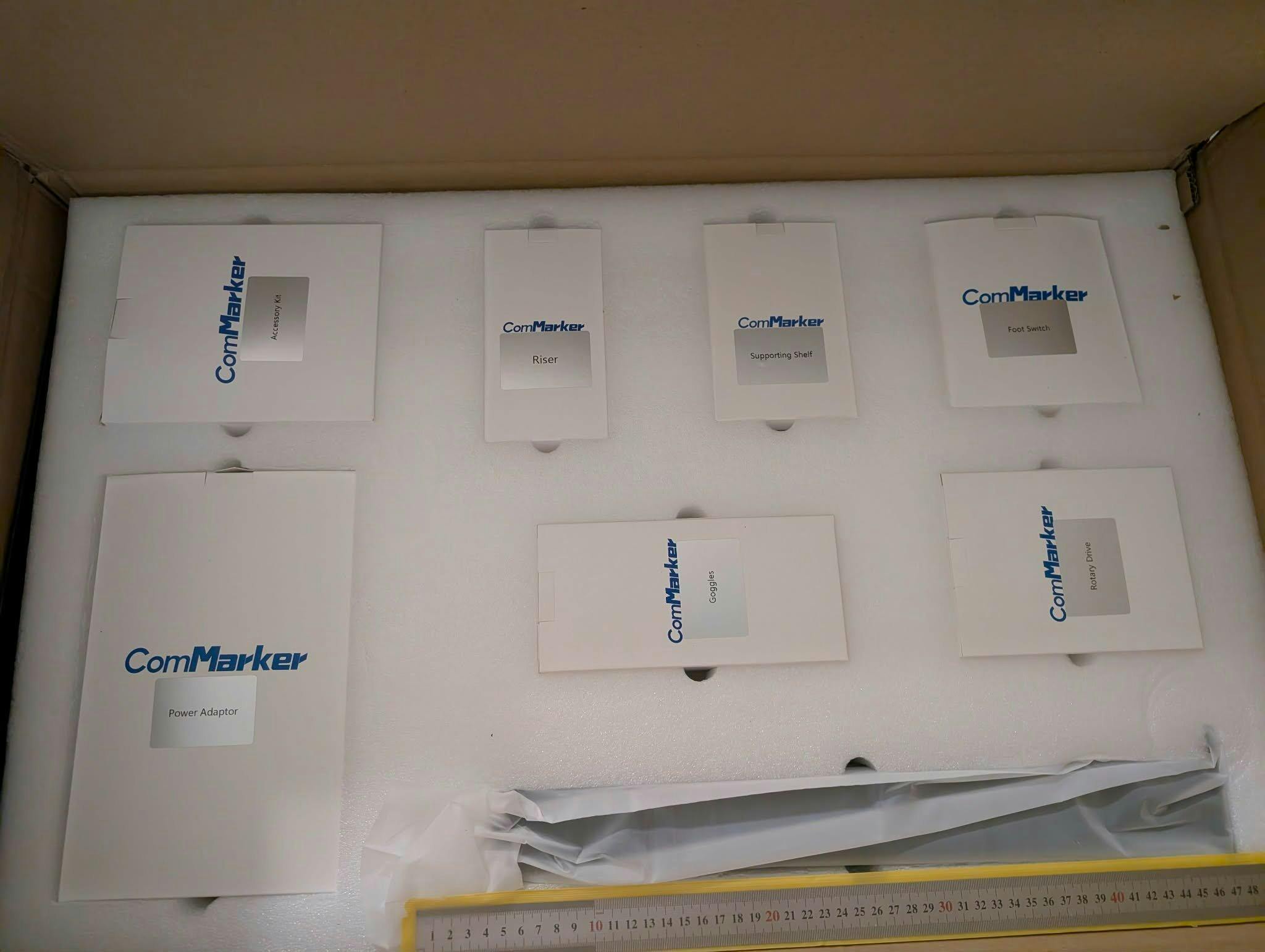

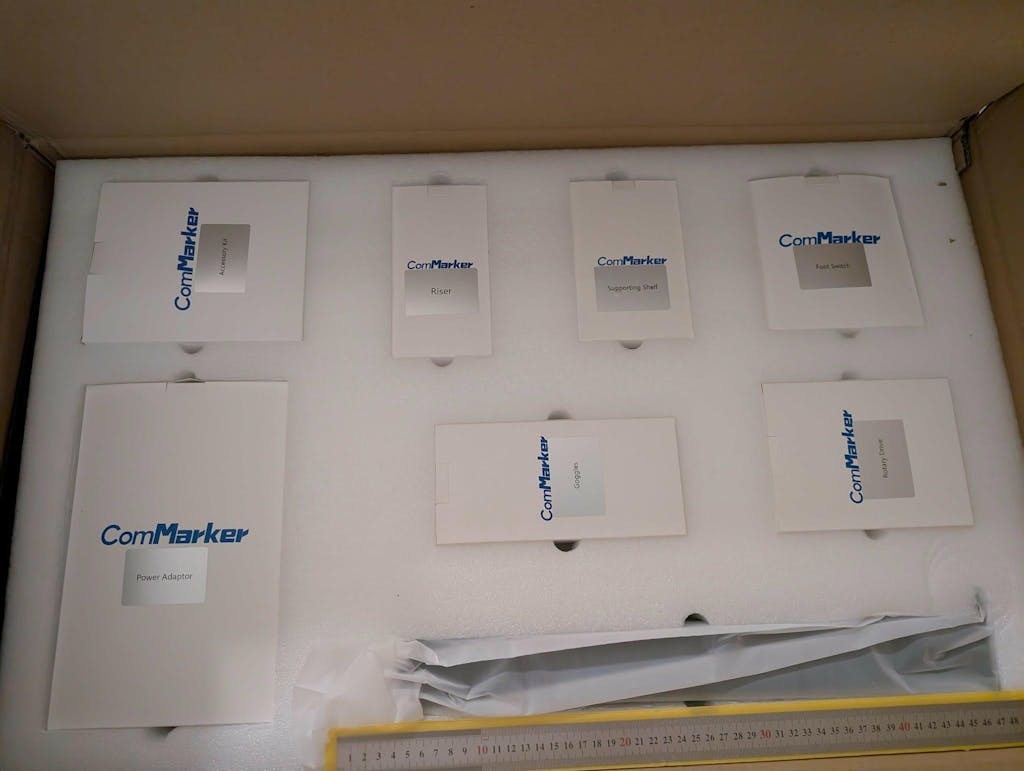

In the Box
B6 MOPA Laser Engraver x 1
Power Adapter x 1
Data Cable x 1
Rotary Drive x 1
Foot Switch x 1
Type-C Cable x 1
Riser x 1
Allen Wrench x 7
Placing Helper x 1
Ruler x 1
Safety Goggles x 1
OTG Adapter x 2
USB Drive x 1
Paper Board
Steel For Testing
Screw M5*14 x 6
Screw M5*10 x 12
Screw M4*12 x 4
Screw M5*12 x 2
