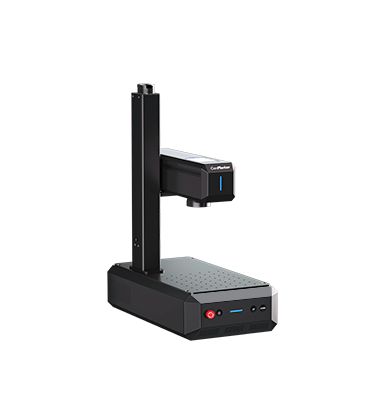

ComMarker B6 Fiber Laser Engraver
Laser Anywhere.Accurate Yet Smart.
- Record-Breaking Compact Size

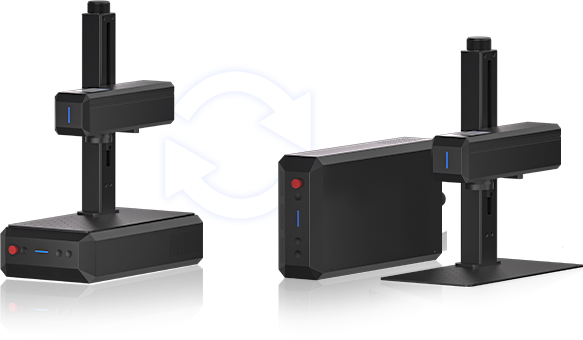

- 2-in-1 Design

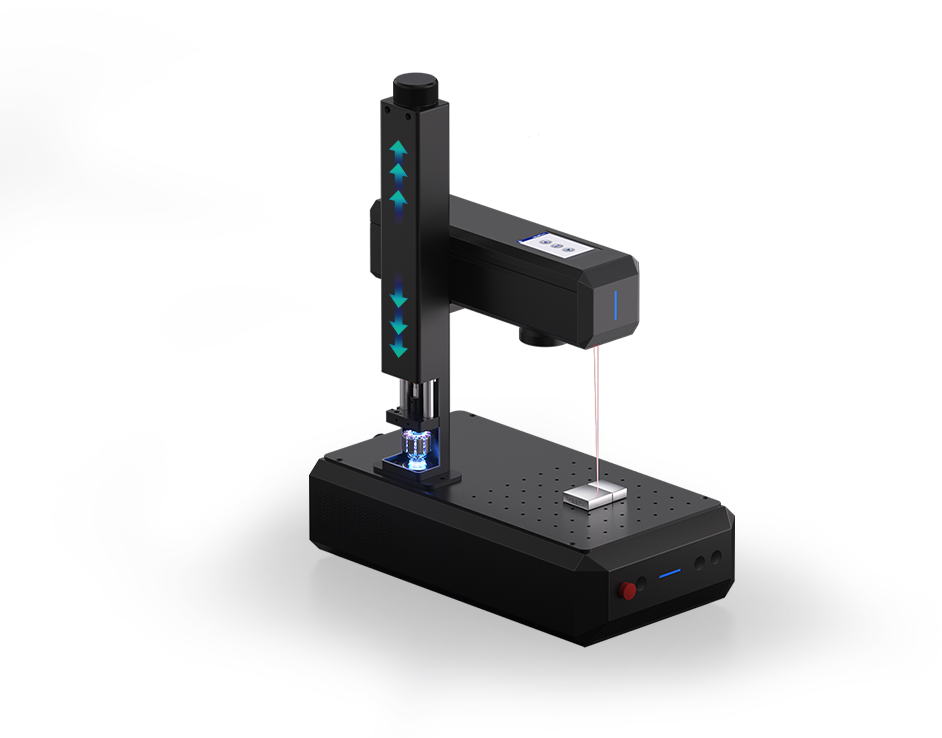

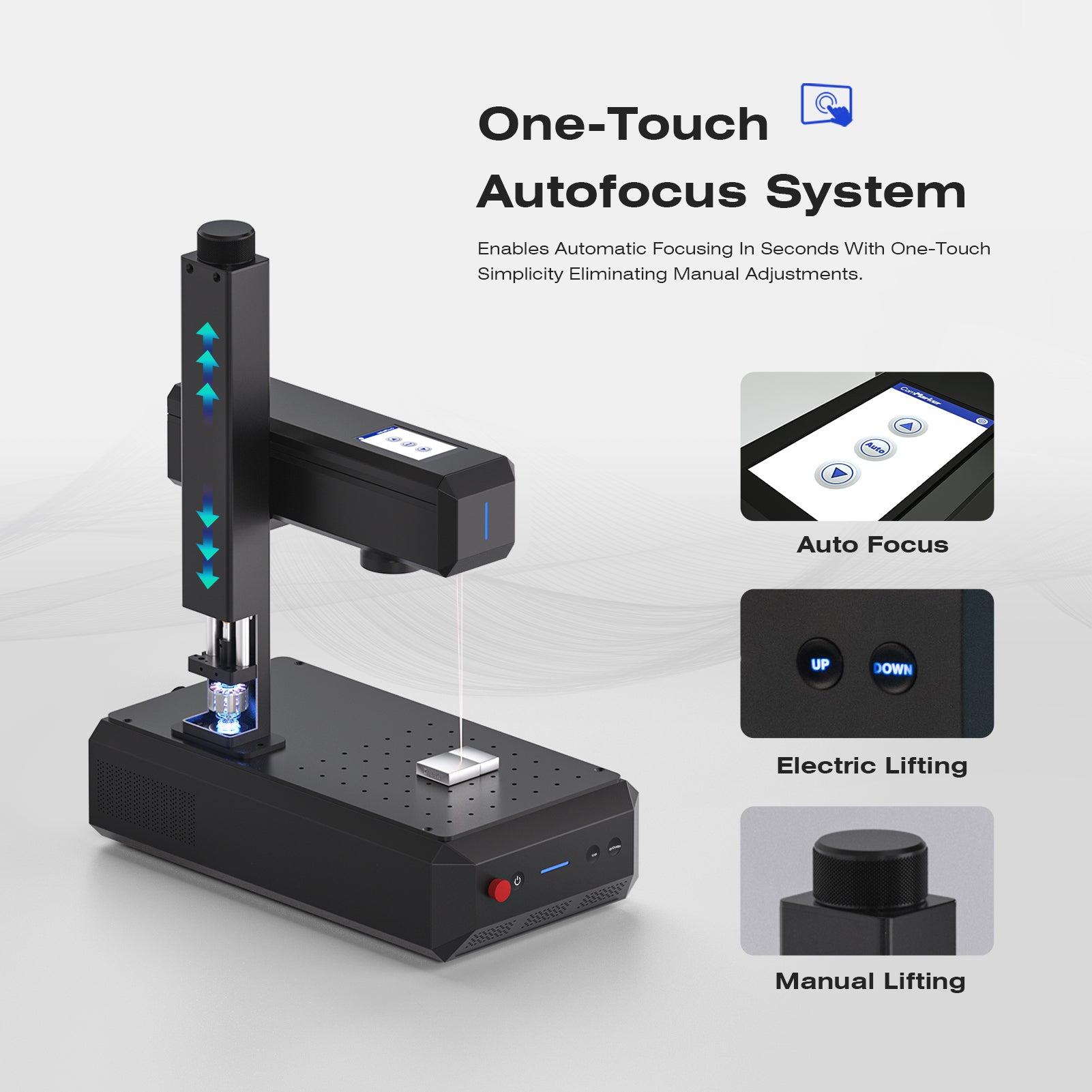

- Auto-Focus Technology
- 15,000mm/s SpeedMax™ Engraving

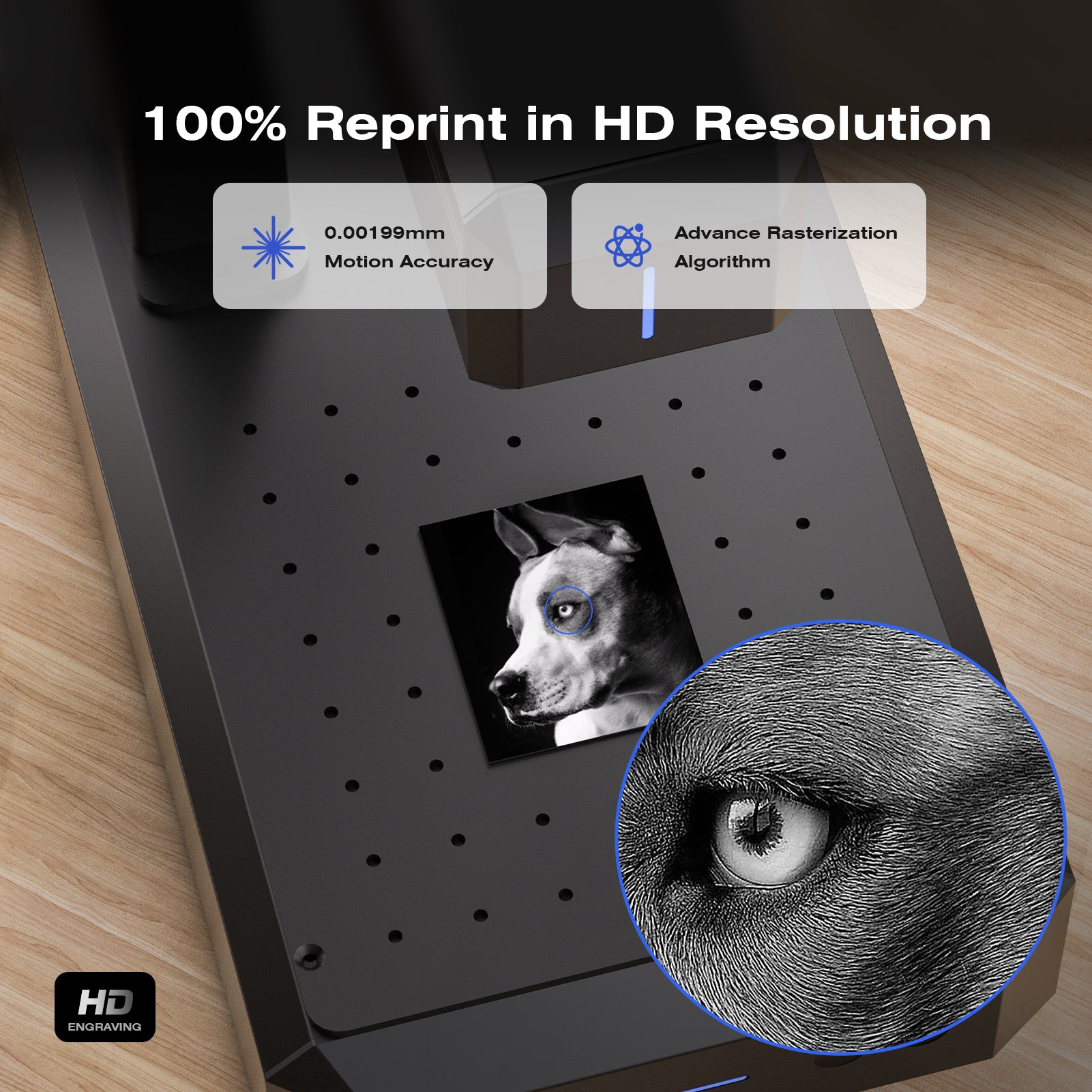

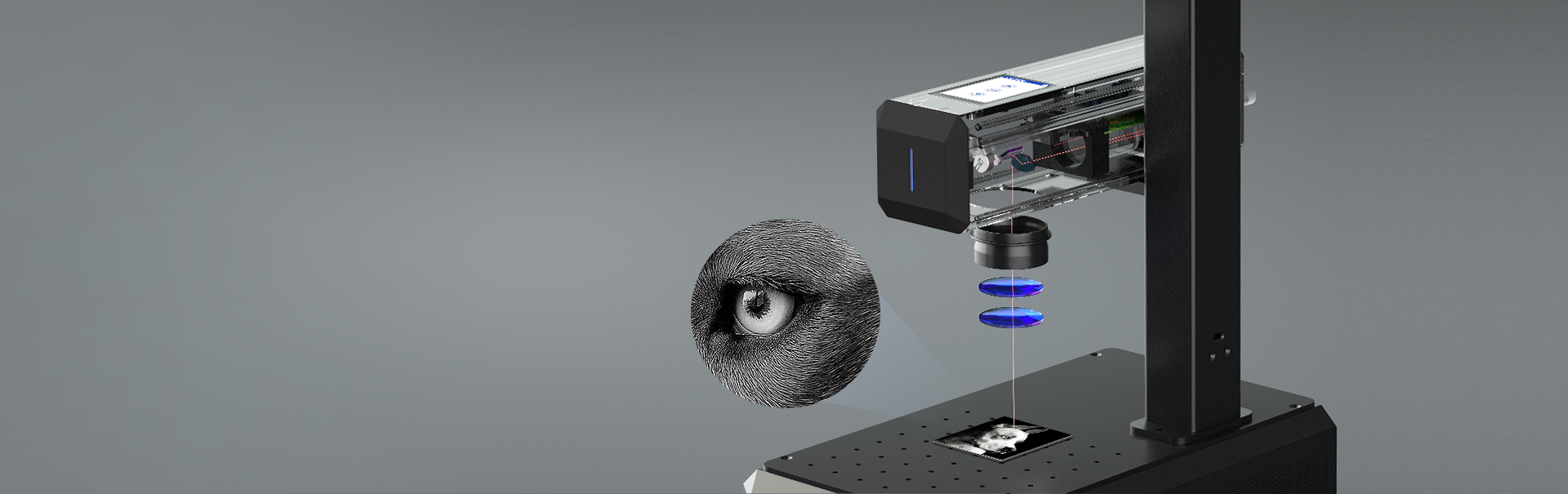

- 8K HD Accuracy
- Smart LED Touch Screen
- ColdFront™ Thermal Technology
- Class 1 Safety Laser Machine
Effect Power
Effect Power:
20W: For Beginners and Hobbyist. Capable of marking and engraving metal.
30W: For Intermediate User and Hobbyist. Capable of marking, engraving and deep engraving.
For more details, please contact hello@commarker.com
Lightburn Pro License
Package
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Contains
- ComMarker B6 Machine
- Material Pack
- Safety Goggles
- Riser
- Material coupon-Extra 20% off
Categories: Laser Engravers, B Series, Fiber Laser
B6 Basic Bundle
B6 Rotary Bundle
B6 Safety Bundle
B6 Ultimate Bundle
B6 20W / Lightburn Pro / B6...
B6 20W / Lightburn Pro / B6...
B6 20W / Lightburn Pro / B6...
B6 20W / Lightburn Pro / B6...
B6 Basic Bundle
B6 Rotary Bundle
B6 Safety Bundle
B6 Ultimate Bundle
B6 30W / Lightburn Pro / B6...
B6 30W / Lightburn Pro / B6...
B6 30W / Lightburn Pro / B6...
B6 30W / Lightburn Pro / B6...

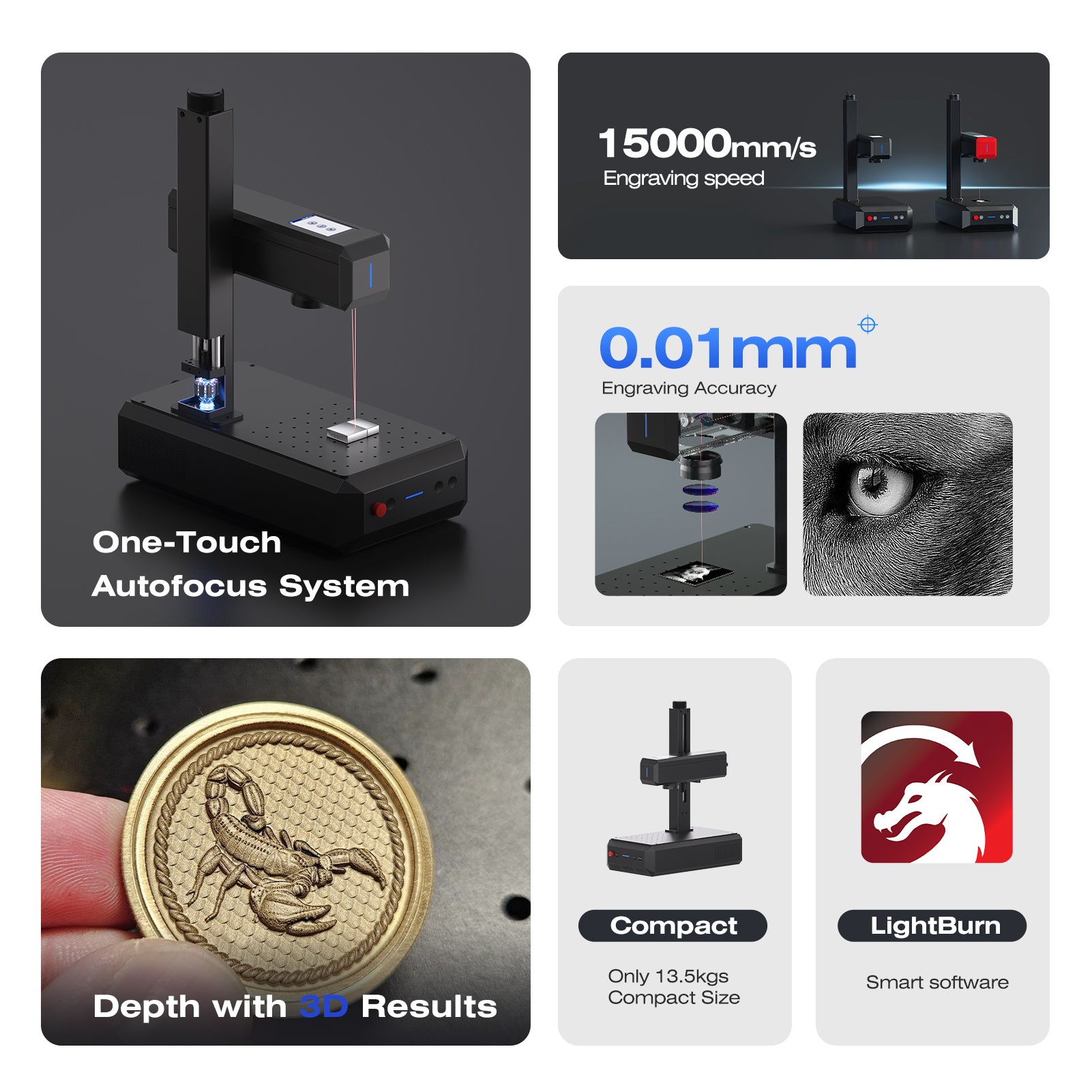

Highlights At A Glance
57% Lighter & 55% Smaller
Record-Breaking Again.
Ultra Portable Design.
Weighing in at just 13.5 kg (29.7 lbs), ComMarker B6 is the smallest industrial-grade fiber laser machine with 20W/30W/50W output. its lightweight design enables on-the-go engraving, ensuring that your creative endeavors are never hindered by location or time constraints, effortlessly adapting to a multitude of applications.
Standard Accessory
More Possibility
With Riser

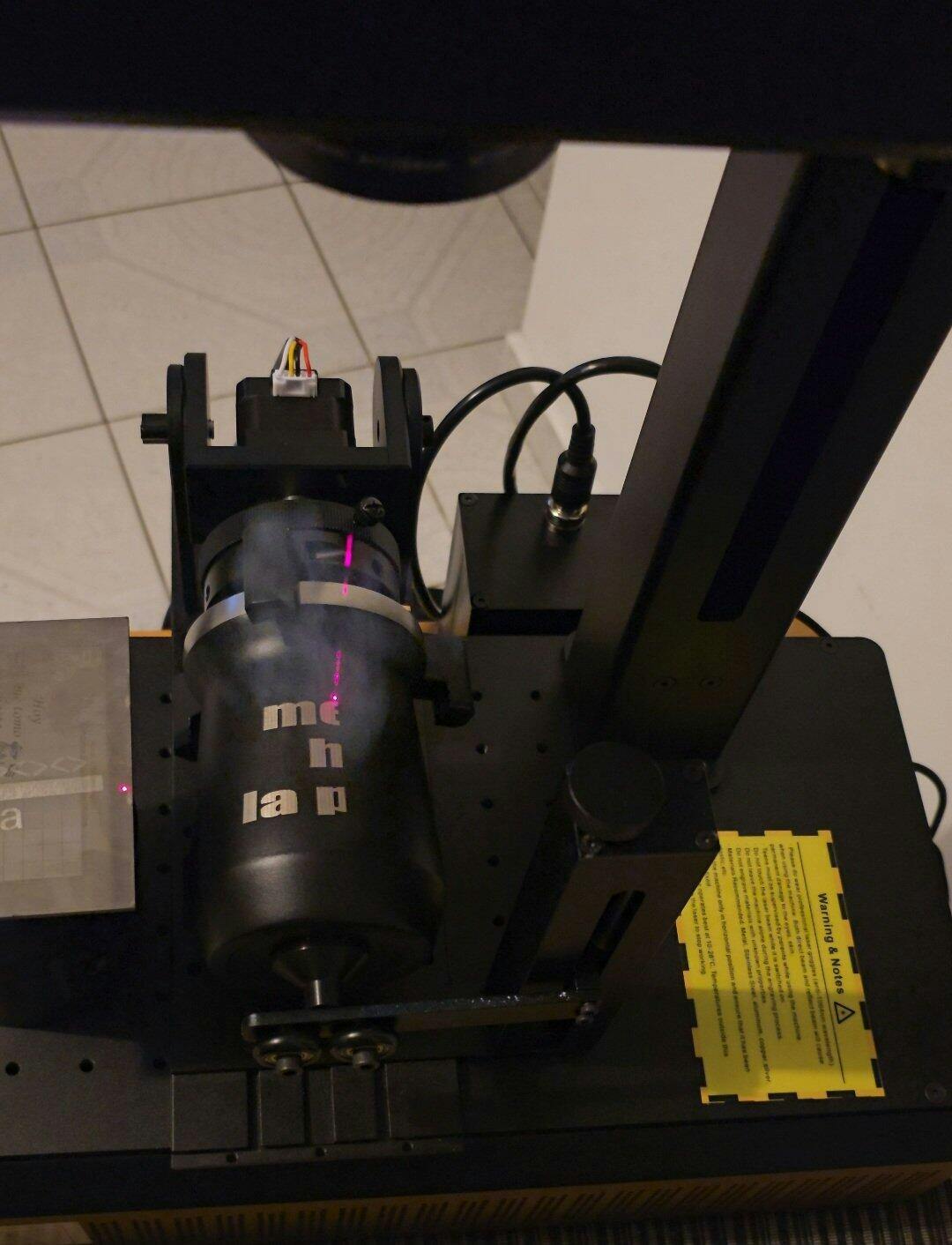

The riser is free included with the machine,You can increase the engraving height by 15cm When engraving cylindrical materials with The rotary attachment.
Built For Longevity
Laser of over 100,000 hours of lifespan is enough to engrave nonstop for 4166 days
Safety
Know you more.
Protect you more.
Safety Enclosure
Include automatic detection of door opening
Emergency Button，
Professional Safety Goggles
Note: The shield or enclosure is optional (need to buy separately)although the machine is designed with safety feature.

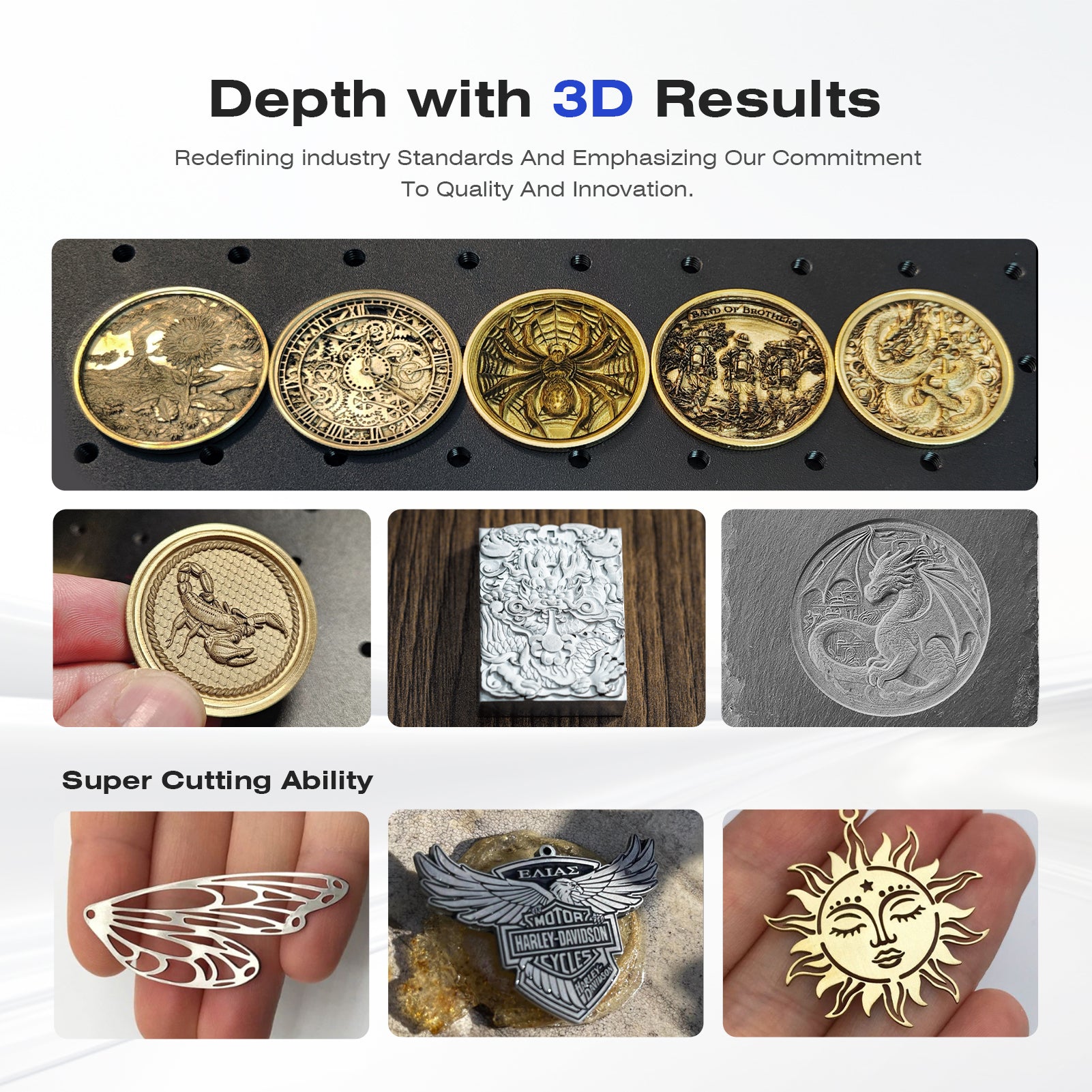

Daily Marking
Depth with 3D ResultsRedefining industry standards and emphasizing our commitment to quality and innovation.
-
-
-
METAL CUTTING
Super Cutting Ability
-
30WEffortlessly Cuts Metals Up To 0.5mm
50WEffortlessly Cuts Metals Up To 1.2mm
More Than Your lmaginationWe believe that time is money, and high power saves you time.B6 can easily Achieve Both Cleaning And Welding.
Batch Engraving Made EasyCoupled with a fixed positioning bar and foot pedal switch, customerscan easily execute batch engraving tasks,such as QR codes, serial numberssteamlining workflows and boosting productivity
Discover the Value of Your Creativity
Join the vibrant ComMarker Facebook group today -- Share your tips,experiences and masterpieces with ComMarker users from all over the world.

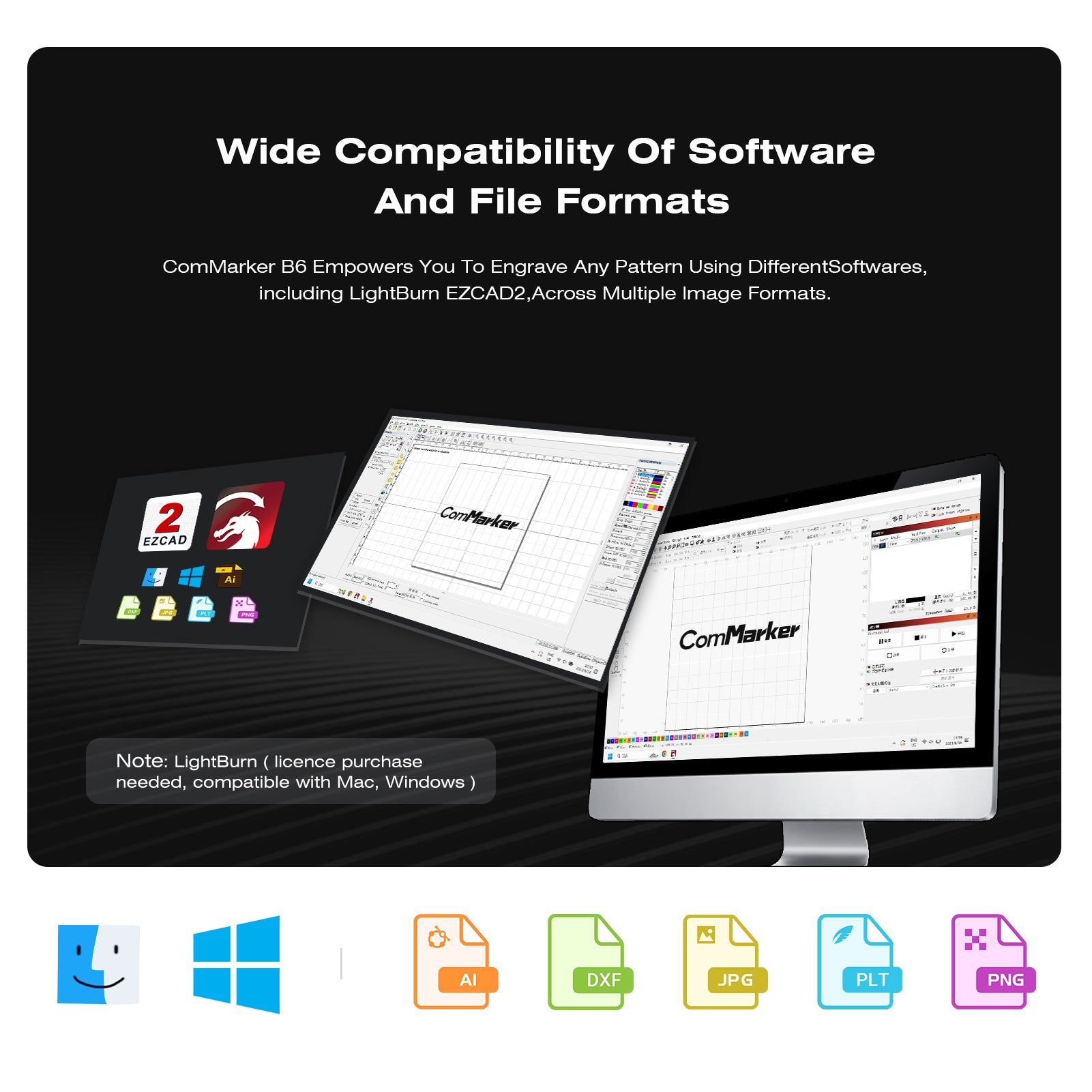

Wide Compatibility of Software And File Formats
ComMarker B6 empowers you to engrave any pattern using different software, including LightBurn EZCAD2, across multiple image formats.
ComMarker B6
Technical Specifications
Laser Type
Fiber Laser
Laser Power
20W / 30W
Laser Wavelength
1064 nm
Expected Service Life
100,000 hr
Processing Mode
Laser Engraving
Laser Cutting

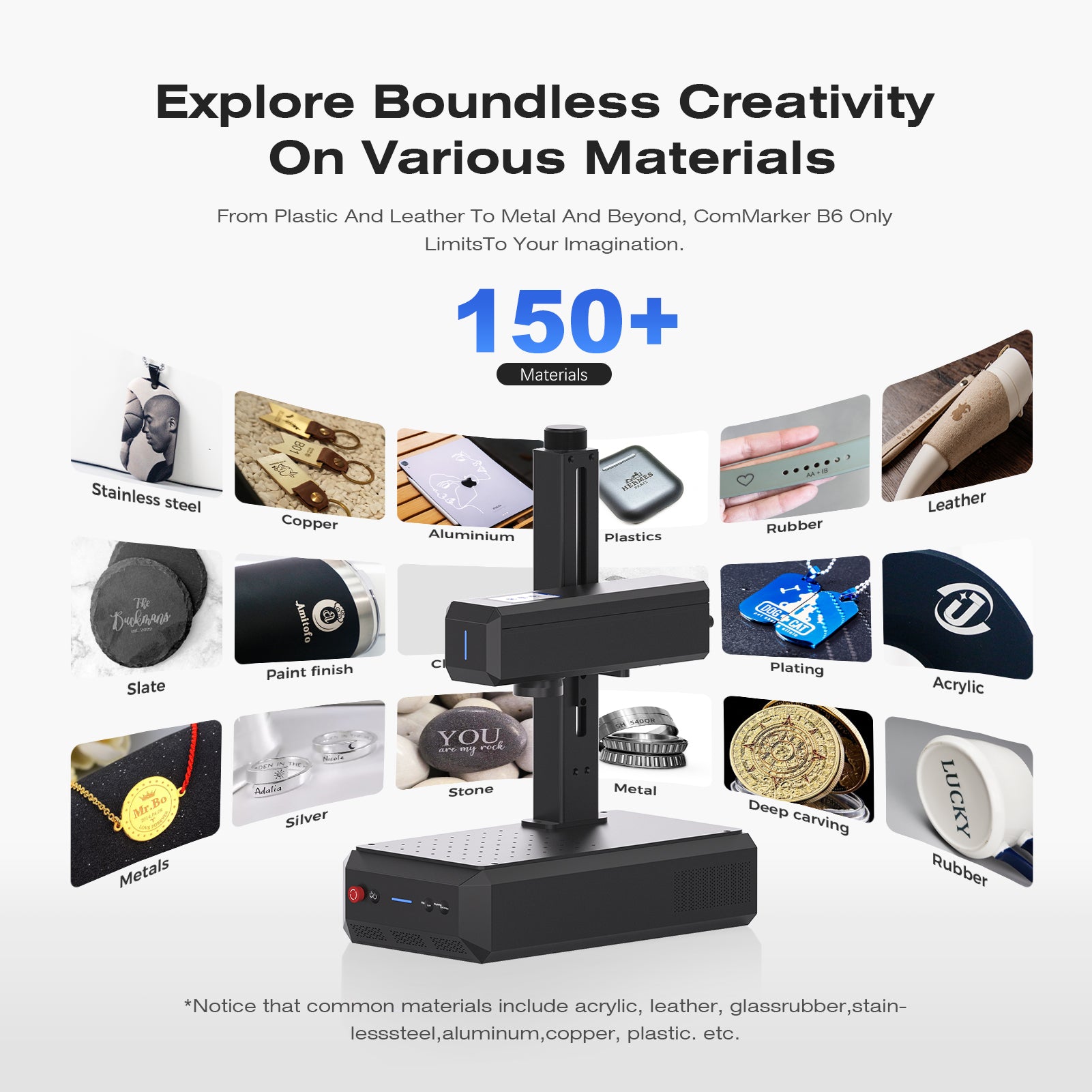

Supported Materials
Stainless Steel, Aluminum, Brass, Copper, Gold, Silver, Stone, Black Acrylic, Leather, Plastic
Working Area
5.9“ × 5.9” (150mm × 150mm)
7.8“ × 7.8” (200mm × 200mm) (With Optional Lens)
Max. Working Speed
15000mm/s
Max. Laser Cutting Capacity (Stainless Steel)
0.6mm in Multiple Passes (20W)
0.8mm in Multiple Passes (30W)
360 Rotary Engraving
Supported
Laser Spot Dimension
0.015mm
XY Positioning Accuracy
0.001mm
Focus Mode
Auto Focus
Z Height Measuring Method
Triangulation
Z Height Measuring Accuracy
0.001mm
Supported Software
EZCAD / Lightburn
Operating System
Windows / macOS
Connection Method
USB
Supported Files
BMP, GIF, JPG, JPEG, DXF, DST, AL, TGA, PNG, TIF, TIFF, SVG, G-CODE, PLT, etc
Safety Certification
Class 1 Laser Safety (With Enclosure)
Class 4 Laser Safety (Single Machine)
Temperature Detection
Supported
Door Sensor
Supported (With Enclosure)
Build Volume
16.9” × 9.4” × 21.7”
(430mm × 240mm × 550mm)
Product Weight
29.7 lbs (13.5 kg)
Chassis & Shell
Aluminum, Steel, Acylic
Laser Frequency
27-60kHz (20W)
30-60kHz (30W)
Pulse Width
80-100@27kHz (20W)
70-100@30kHz (30W)
Maximum Pulse Energy
0.7mJ (20W)
1mJ (30W)
Power Adapter Input Voltage
100-230V
Working Temperature
50-83℉ (10-28℃)

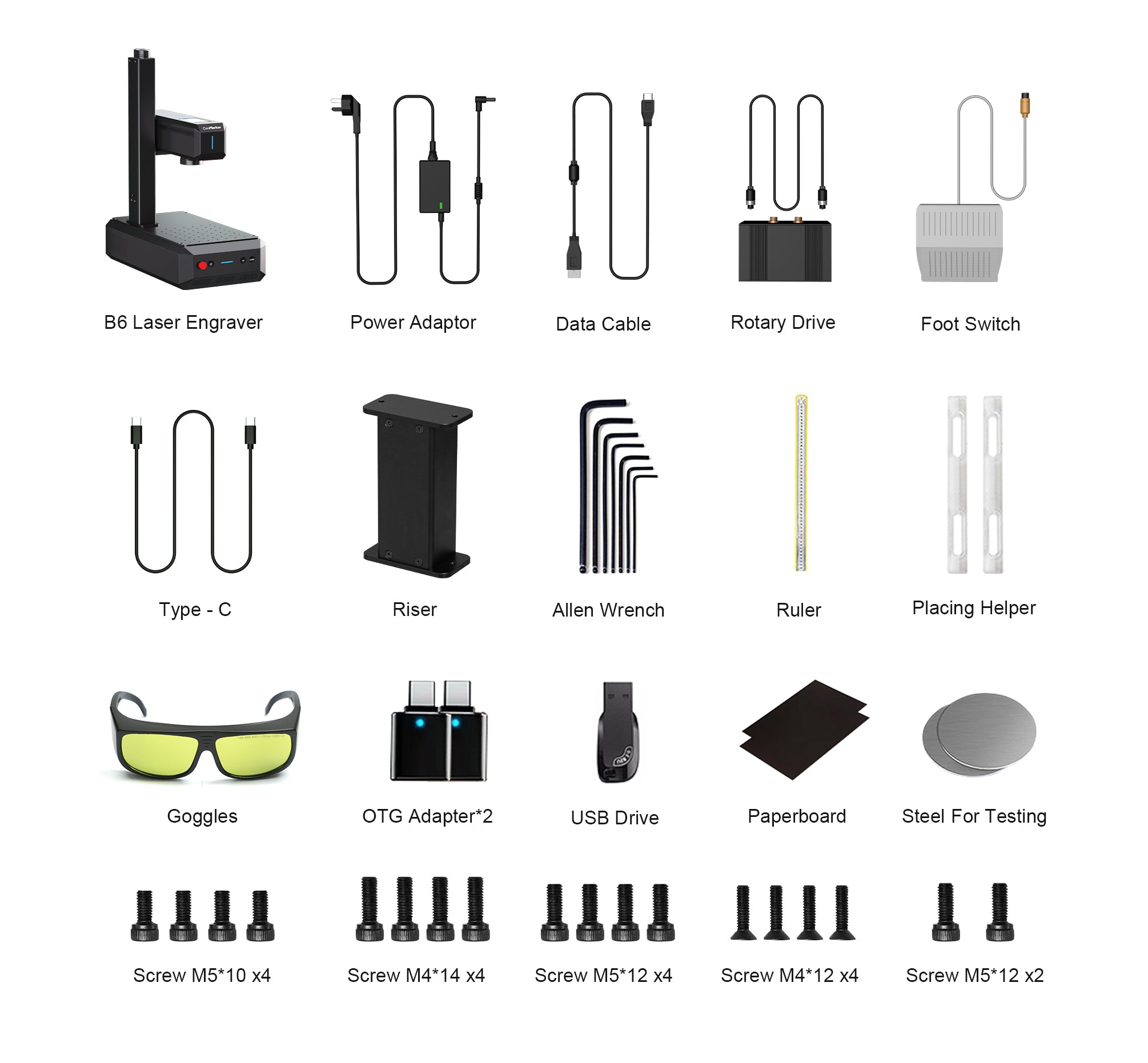

In the Box
B6 Laser Engraver x 1
Power Adapter x 1
Data Cable x 1
Rotary Drive x 1
Foot Switch x 1
Type-C Cable x 1
Riser x 1
Allen Wrench x 7
Placing Helper x 1
Ruler x 1
Safety Goggles x 1
OTG Adapter x 2
USB Drive x 1
Paper Board
Steel For Testing
Screw M5*14 x 6
Screw M5*10 x 12
Screw M4*12 x 4
Screw M5*12 x 2
